NJVMJD32CT4G-VF01

NJVMJD32CT4G-VF01

Part NumberNJVMJD32CT4G-VF01

ManufacturerON Semiconductor

DescriptionTRANS PNP 100V 3A DPAK

DatasheetMJD31 (NPN), MJD32 (PNP)

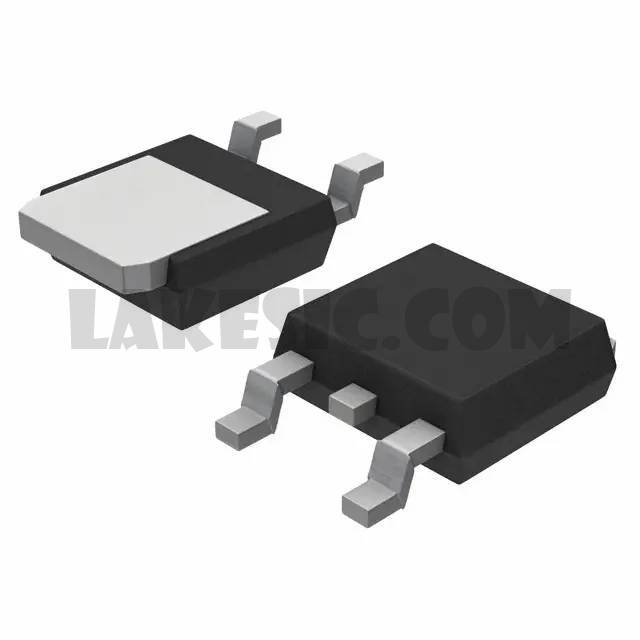

Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 100V 3A 3MHz 1.56W Surface Mount DPAK

To learn about the specification of NJVMJD32CT4G-VF01, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NJVMJD32CT4G-VF01 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NJVMJD32CT4G-VF01.
We are offering NJVMJD32CT4G-VF01 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NJVMJD32CT4G-VF01 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MJD31 (NPN), MJD32 (PNP)
Standard Package	2500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	1.2V @ 375mA, 3A
Current - Collector Cutoff (Max)	20µA
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 3A, 4V
Power - Max	1.56W
Frequency - Transition	3MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	DPAK
Base Part Number	MJD32C
