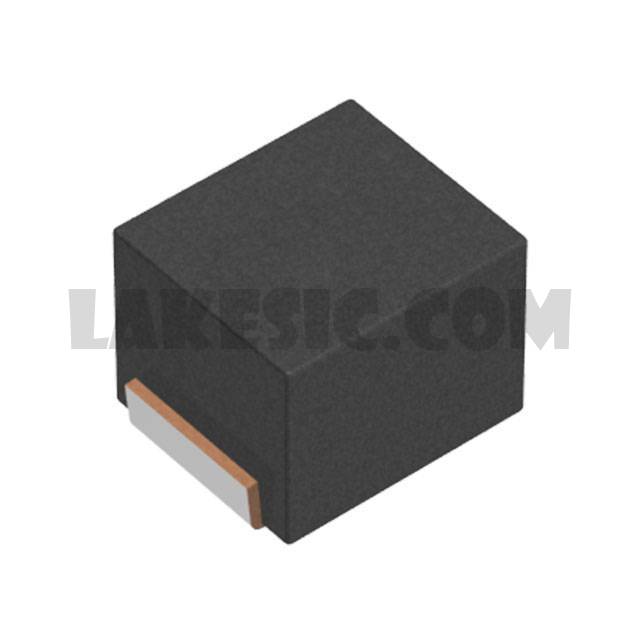

NLCV25T-1R0M-EFR

Part NumberNLCV25T-1R0M-EFR

To learn about the specification of NLCV25T-1R0M-EFR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLCV25T-1R0M-EFR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLCV25T-1R0M-EFR.
We are offering NLCV25T-1R0M-EFR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NLCV25-EFR Series, Commercial
Standard Package	2000
Manufacturer	TDK Corporation
Series	NLCV-EF
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	168mOhm Max
Q @ Freq	10 @ 7.96MHz
Frequency - Self Resonant	100MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	7.96MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.075" (1.90mm)
