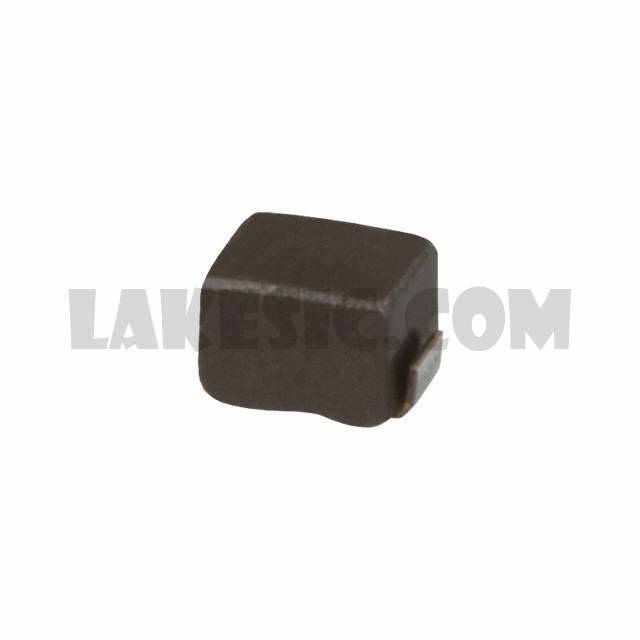

NLFC201614T-220K-PF

Part NumberNLFC201614T-220K-PF

ManufacturerTDK Corporation

DescriptionFIXED IND 22UH 75MA 1.7 OHM SMD

DatasheetNLFC2016 Type

Package / Case0806 (2016 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Inductor 75mA 1.7Ohm 0806 (2016 Metric)

To learn about the specification of NLFC201614T-220K-PF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLFC201614T-220K-PF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLFC201614T-220K-PF.
We are offering NLFC201614T-220K-PF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NLFC201614T-220K-PF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NLFC2016 Type

Standard Package

2000

Manufacturer

TDK Corporation

Series

NLFC

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Inductance

22µH

Tolerance

±10%

Current Rating (Amps)

75mA

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

1.7Ohm

Q @ Freq

10 @ 2.52MHz

Frequency - Self Resonant

16MHz

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

2.52MHz

Mounting Type

Surface Mount

Package / Case

0806 (2016 Metric)

Supplier Device Package

0806 (2016 Metric)

Size / Dimension

0.083" L x 0.063" W (2.10mm x 1.60mm)

Height - Seated (Max)

0.063" (1.60mm)
