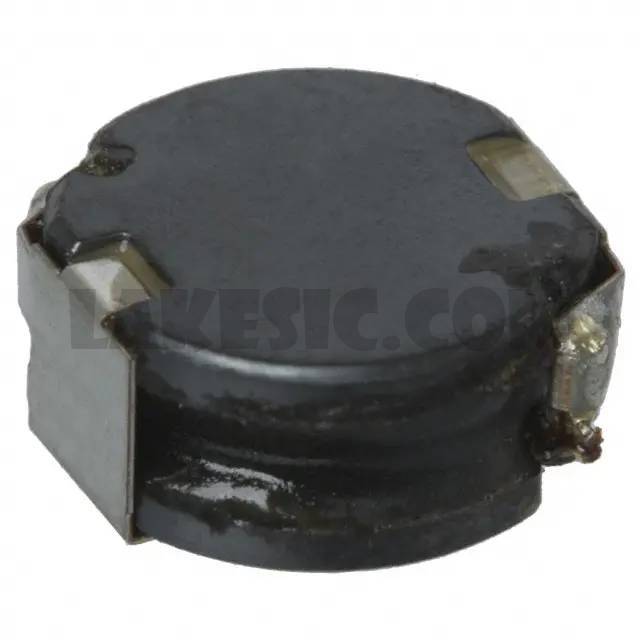

NR10050T220M


NR10050T220M

Part NumberNR10050T220M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR10050T220M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerTaiyo Yuden
SeriesNR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±20%
Current Rating (Amps)2.5A
Current - Saturation2.6A
ShieldingUnshielded
DC Resistance (DCR)58.5mOhm Max
Q @ Freq-
Frequency - Self Resonant10MHz
Ratings-
Operating Temperature-25°C ~ 105°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max)0.197" (5.00mm)
