Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	630mA
Current - Saturation	540mA
Shielding	Shielded
DC Resistance (DCR)	348mOhm Max
Q @ Freq	-
Frequency - Self Resonant	32MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.047" (1.20mm)

NRS6010T1R5MMGF	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 1.9A 108mOhm Max 2304 (6010 Metric), NR, S Type	View
NRH2410T4R7MN	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 670mA 348mOhm Max Nonstandard, NR, H Type	View
NRS6014T3R3NMGG	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 2.2A 90mOhm Max Nonstandard, NR, S Type	View
NR4018T100M	Taiyo Yuden, 10µH Shielded Wirewound Inductor 840mA 216mOhm Max Nonstandard, NR	View
NRH3012T4R7MN	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.06A 156mOhm Max Nonstandard, NR, H Type	View
NRS5024T6R8MMGJ	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 1.6A 80mOhm Max Nonstandard, NR, S Type	View
NRS5024T2R2NMGJ	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 3.1A 29mOhm Max Nonstandard, NR, S Type	View
NRS4012T4R7MDGJV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.5A 114mOhm Max Nonstandard, NR, S Type	View
NRS5010T4R7MMGF	Taiyo Yuden, 4.7µH Unshielded Wirewound Inductor 1.39A 174mOhm Max Nonstandard, NR, S Type	View
NRS5020T100MMGJ	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.45A 144mOhm Max Nonstandard, NR, S Type	View
NRV2010T1R0NGF	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.6A 96mOhm Max Nonstandard, NR, V Type	View
NRS6028T1R5NMGJV	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 4.2A 20.8mOhm Max Nonstandard, NR, S Type	View

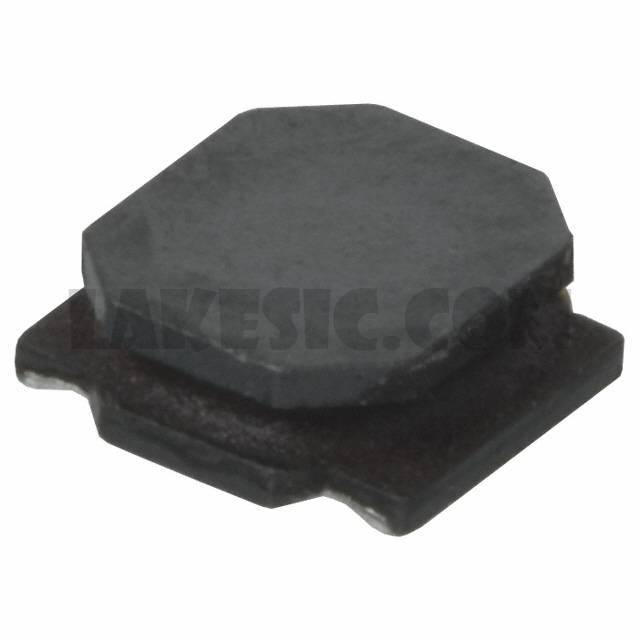

NR3012T100M

Part NumberNR3012T100M
