Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	2000
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1µH
Tolerance	±30%
Current Rating (Amps)	2.1A
Current - Saturation	2.1A
Shielding	Shielded
DC Resistance (DCR)	36mOhm Max
Q @ Freq	-
Frequency - Self Resonant	100MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.059" (1.50mm)

NRS5024T330MMGJV	Taiyo Yuden, 33µH Shielded Wirewound Inductor 630mA 444mOhm Max Nonstandard, NR, S Type	View
NRH3012T1R0NNV	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.71A 57.6mOhm Max Nonstandard, NR, H Type	View
NRS6014T220MMGG	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.09A 360mOhm Max Nonstandard, NR, S Type	View
NRV2012T1R0NGFV	Taiyo Yuden, 1µH Unshielded Wirewound Inductor 1.65A 87.6mOhm Max Nonstandard, NR, V Type	View
NRS4012T4R7MDGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.5A 114mOhm Max Nonstandard, NR, S Type	View
NR4018T1R0N	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.83A 36mOhm Max Nonstandard, NR	View
NRS6012T680MMGJ	Taiyo Yuden, 68µH Shielded Wirewound Inductor 410mA 1.392Ohm Max Nonstandard, NR, S Type	View
NRS6045T150MMGK	Taiyo Yuden, 15µH Shielded Wirewound Inductor 1.9A 91mOhm Max Nonstandard, NR, S Type	View
NRS5012T1R5NMGF	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 2.2A 84mOhm Max 2005 (5012 Metric), NR, S Type	View
NRS3015T4R7MNGH	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.04A 120mOhm Max Nonstandard, NR, S Type	View
NRS6028T4R7MMGKV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 3A 40.3mOhm Max Nonstandard, NR, S Type	View
NRS5020T100MMGJ	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.45A 144mOhm Max Nonstandard, NR, S Type	View

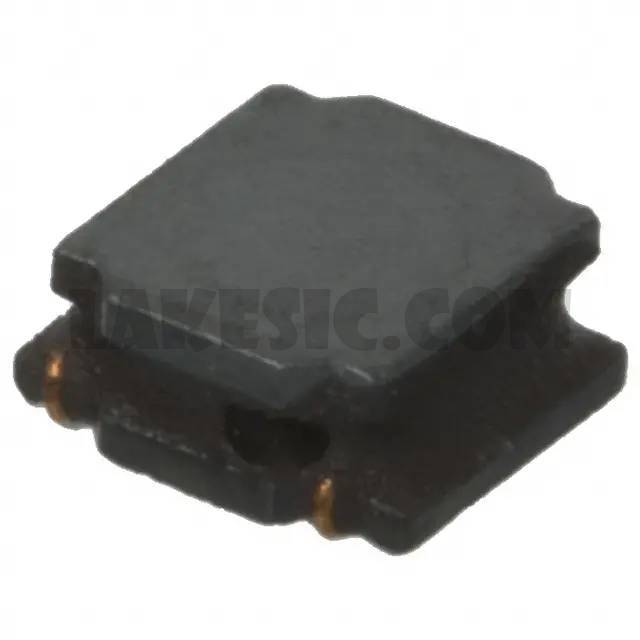

NR3015T1R0N

Part NumberNR3015T1R0N
