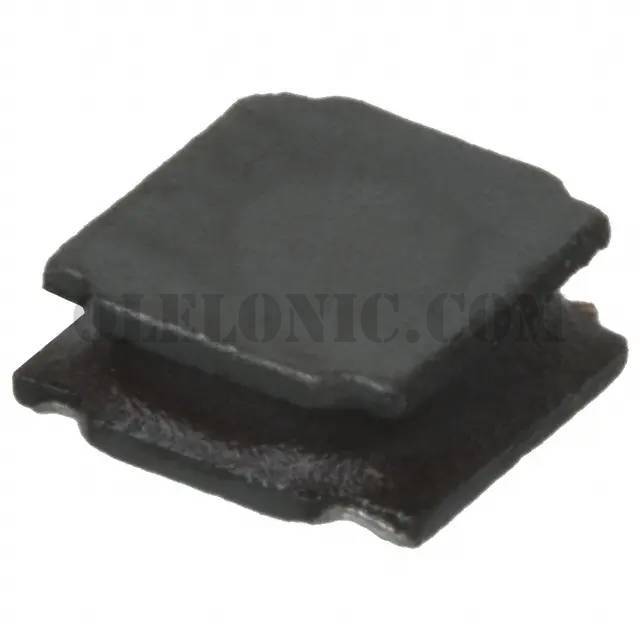

NR4018T101M


NR4018T101M

Part NumberNR4018T101M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR4018T101M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package3500
ManufacturerTaiyo Yuden
SeriesNR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance100µH
Tolerance±20%
Current Rating (Amps)270mA
Current - Saturation400mA
ShieldingShielded
DC Resistance (DCR)1.8Ohm Max
Q @ Freq-
Frequency - Self Resonant6.5MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)0.071" (1.80mm)
