Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	150µH
Tolerance	±20%
Current Rating (Amps)	220mA
Current - Saturation	310mA
Shielding	Shielded
DC Resistance (DCR)	3Ohm Max
Q @ Freq	-
Frequency - Self Resonant	5.5MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)

NRS5012T4R7MMGFV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.4A 216mOhm Max Nonstandard, NR, S Type	View
NRS2012T3R3MGJ	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 1.02A 190mOhm Nonstandard, NR, S Type	View
NRS8040T220MJGJ	Taiyo Yuden, 22µH Shielded Wirewound Inductor 2.2A 85.8mOhm Max Nonstandard, NR, S Type	View
NRS5024T1R5NMGJ	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 3.6A 22mOhm Max Nonstandard, NR, S Type	View
NRS5012T2R2MMGF	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 102mOhm Max 2005 (5012 Metric), NR, S Type	View
NR6045T470M	Taiyo Yuden, 47µH Shielded Wirewound Inductor 1.1A 286mOhm Max Nonstandard, NR	View
NRS6045T150MMGKV	Taiyo Yuden, 15µH Shielded Wirewound Inductor 1.9A 91mOhm Max Nonstandard, NR, S Type	View
NRS6045T470MMGKV	Taiyo Yuden, 47µH Shielded Wirewound Inductor 1.15A 274.3mOhm Max Nonstandard, NR, S Type	View
NRS8040T150MJGJ	Taiyo Yuden, 15µH Shielded Wirewound Inductor 2.4A 65mOhm Max Nonstandard, NR, S Type	View
NR6020T1R5N	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 3.2A 31.2mOhm Max Nonstandard, NR	View
NRS8030T100MJGJV	Taiyo Yuden, 10µH Shielded Wirewound Inductor 3A 42.9mOhm Max Nonstandard, NR, S Type	View
NRH3010T220MNV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 410mA 924mOhm Max Nonstandard, NR, H Type	View

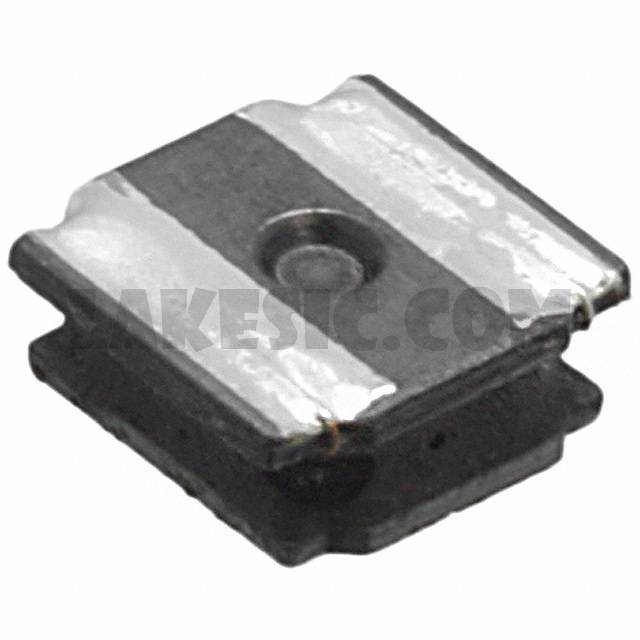

NR4018T151M

Part NumberNR4018T151M
