Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±20%
Current Rating (Amps)	920mA
Current - Saturation	950mA
Shielding	Shielded
DC Resistance (DCR)	390mOhm Max
Q @ Freq	-
Frequency - Self Resonant	8MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.110" (2.80mm)

NRS5030TR47NMGJV	Taiyo Yuden, 470nH Shielded Wirewound Inductor 5A 13mOhm Max Nonstandard, NR, S Type	View
NRS6028T1R5NMGJV	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 4.2A 20.8mOhm Max Nonstandard, NR, S Type	View
NRS8030T4R7MJGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 4A 28.6mOhm Max Nonstandard, NR, S Type	View
NR3015T1R5N	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 1.82A 48mOhm Max Nonstandard, NR	View
NRH3012T2R2MNV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 1.37A 90mOhm Max Nonstandard, NR, H Type	View
NRS5030T330MMGJV	Taiyo Yuden, 33µH Shielded Wirewound Inductor 800mA 292.5mOhm Max Nonstandard, NR, S Type	View
NRS6012T100MMGJV	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.2A 240mOhm Max Nonstandard, NR, S Type	View
NRS5024T330MMGJV	Taiyo Yuden, 33µH Shielded Wirewound Inductor 630mA 444mOhm Max Nonstandard, NR, S Type	View
NRS6028T4R7MMGK	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 3A 40.3mOhm Max Nonstandard, NR, S Type	View
NRS6020T100MMGGV	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.5A 150mOhm Max Nonstandard, NR, S Type	View
NRS5040T6R8MMGJV	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 2.4A 63.7mOhm Max Nonstandard, NR, S Type	View
NRH2410T2R2MNV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 970mA 180mOhm Max Nonstandard, NR, H Type	View

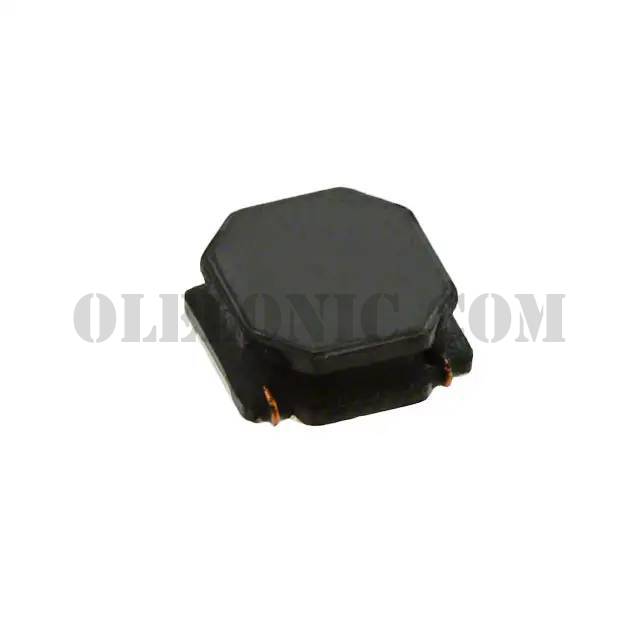

NR6028T470M

Part NumberNR6028T470M
