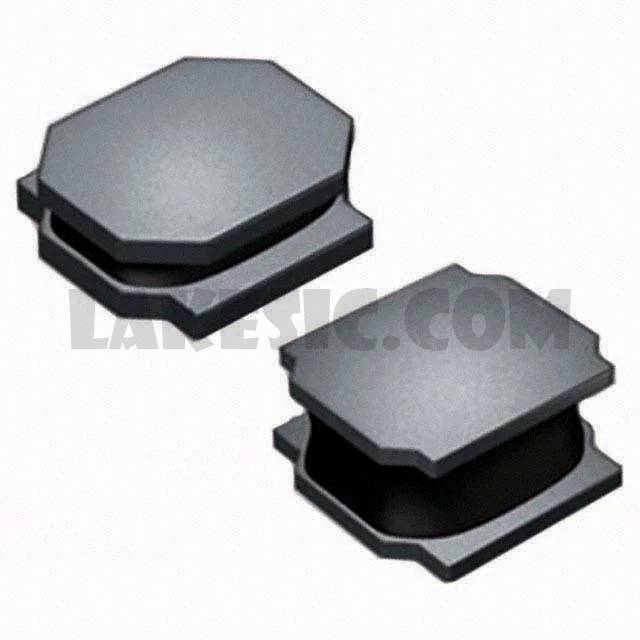

NRH3010T150MN


NRH3010T150MN

Part NumberNRH3010T150MN

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NRH3010T150MN - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTaiyo Yuden
SeriesNR, H Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±20%
Current Rating (Amps)480mA
Current - Saturation450mA
ShieldingShielded
DC Resistance (DCR)660mOhm Max
Q @ Freq-
Frequency - Self Resonant25MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)0.039" (1.00mm)
