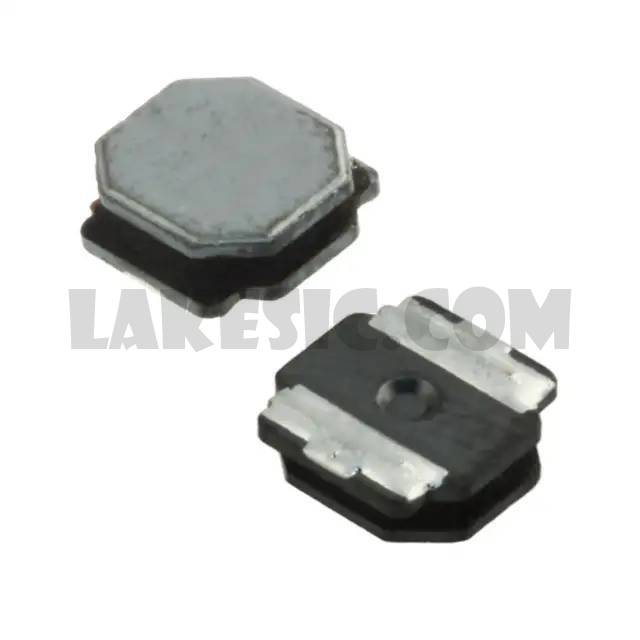

NRS5030T100MMGJV


NRS5030T100MMGJV

Part NumberNRS5030T100MMGJV

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NRS5030T100MMGJV - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesNR, S Type
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±20%
Current Rating (Amps)1.7A
Current - Saturation2.1A
ShieldingShielded
DC Resistance (DCR)91mOhm Max
Q @ Freq-
Frequency - Self Resonant20MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)0.118" (3.00mm)
