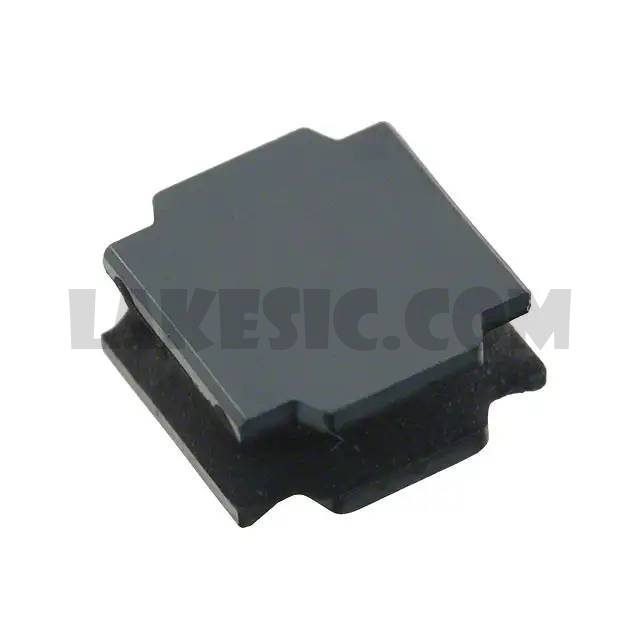

NRS6012T680MMGJ


NRS6012T680MMGJ

Part NumberNRS6012T680MMGJ

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NRS6012T680MMGJ - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerTaiyo Yuden
SeriesNR, S Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance68µH
Tolerance±20%
Current Rating (Amps)410mA
Current - Saturation440mA
ShieldingShielded
DC Resistance (DCR)1.392Ohm Max
Q @ Freq-
Frequency - Self Resonant3MHz
Ratings-
Operating Temperature-25°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)0.047" (1.20mm)
