Categories	Inductors, Coils, Chokes / Fixed Inductors

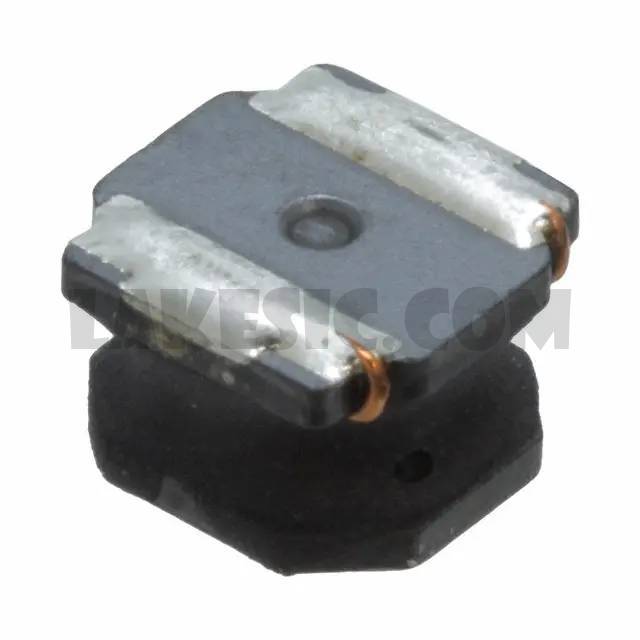

Datasheet	NRS6045T1R8NMGK View all Specification
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR, S Type
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1.8µH
Tolerance	±30%
Current Rating (Amps)	3.9A
Current - Saturation	7.2A
Shielding	Shielded
DC Resistance (DCR)	24.7mOhm Max
Q @ Freq	-
Frequency - Self Resonant	80MHz
Ratings	-
Operating Temperature	-25°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.177" (4.50mm)
