NS10145T2R2NNA
NS10145T2R2NNA

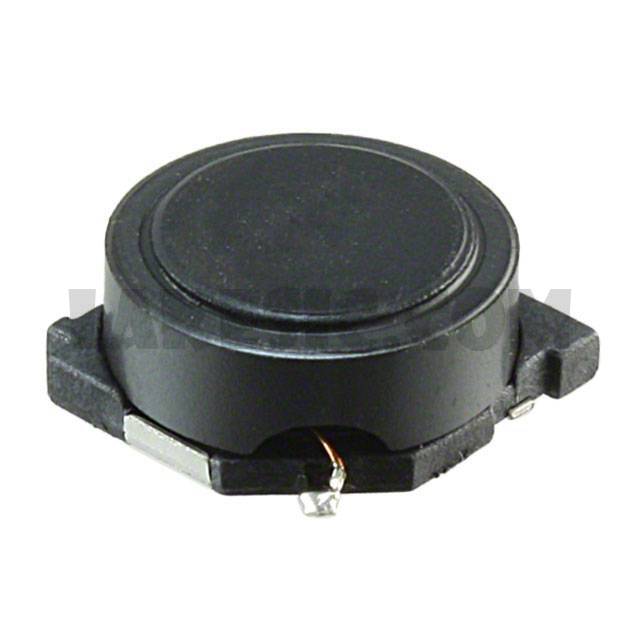

Part Number NS10145T2R2NNA Description FIXED IND 2.2UH 6.64A 10 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Shielded Wirewound Inductor 6.64A 10mOhm Max Nonstandard
To learn about the specification of NS10145T2R2NNA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NS10145T2R2NNA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NS10145T2R2NNA.
We are offering NS10145T2R2NNA for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
NS10145T2R2NNA - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet NS10145T2R2NNA View all Specification Standard Package 500 Manufacturer Taiyo Yuden Series NS Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core Ferrite Inductance 2.2µH Tolerance ±30% Current Rating (Amps) 6.64A Current - Saturation 8.91A Shielding Shielded DC Resistance (DCR) 10mOhm Max Q @ Freq - Frequency - Self Resonant 43.9MHz Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.398" L x 0.398" W (10.10mm x 10.10mm) Height - Seated (Max) 0.191" (4.85mm)
