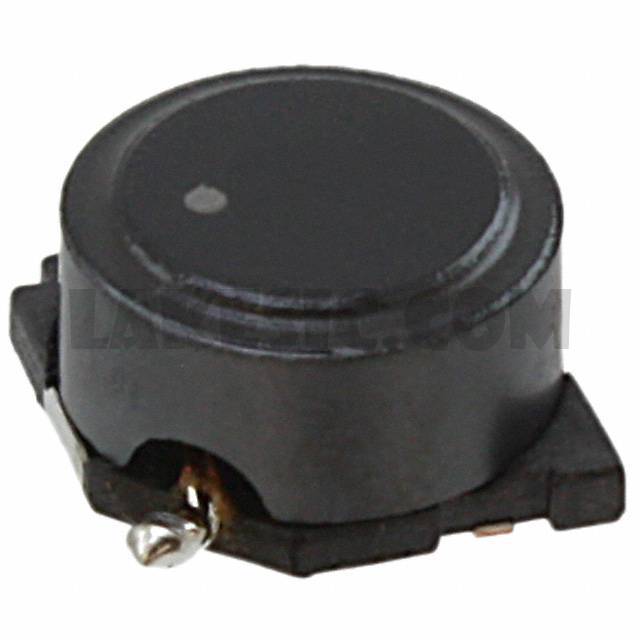

NS10155T4R7NNA
NS10155T4R7NNA
Part Number NS10155T4R7NNA
Description FIXED IND 4.7UH 6.01A 13.2 MOHM
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 4.7µH Shielded Wirewound Inductor 6.01A 13.2mOhm Max Nonstandard
To learn about the specification of NS10155T4R7NNA, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NS10155T4R7NNA with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NS10155T4R7NNA.
We are offering NS10155T4R7NNA for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
NS10155T4R7NNA - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet NS10155T4R7NNA View all Specification
Standard Package 1
Manufacturer Taiyo Yuden
Series NS
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7µH
Tolerance ±30%
Current Rating (Amps) 6.01A
Current - Saturation 7.4A
Shielding Shielded
DC Resistance (DCR) 13.2mOhm Max
Q @ Freq -
Frequency - Self Resonant 33.4MHz
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max) 0.230" (5.85mm)
