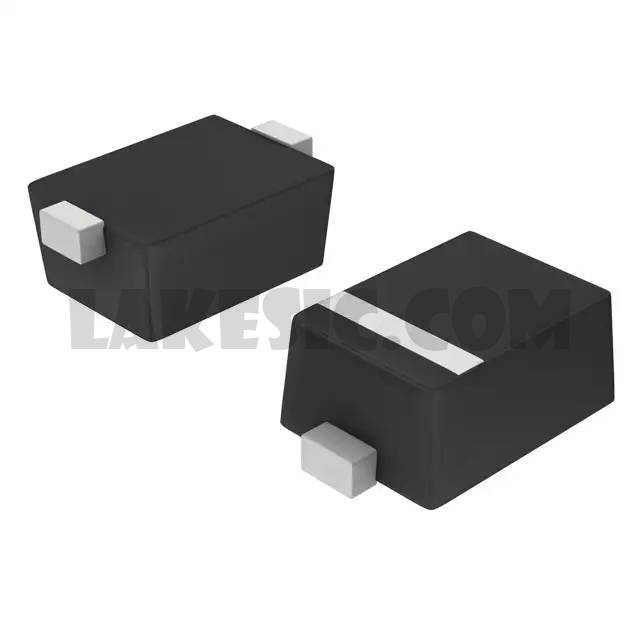

NSR0170P2T5G

NSR0170P2T5G

Part NumberNSR0170P2T5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 70V 70MA SOD923

DatasheetNSR0170P2T5G

Package / CaseSOD-923

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 70V 70mA (DC) Surface Mount SOD-923

To learn about the specification of NSR0170P2T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR0170P2T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR0170P2T5G.
We are offering NSR0170P2T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR0170P2T5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR0170P2T5G
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io)	70mA (DC)
Voltage - Forward (Vf) (Max) @ If	730mV @ 15mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	3µA @ 70V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-923
Supplier Device Package	SOD-923
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	NSR0170
