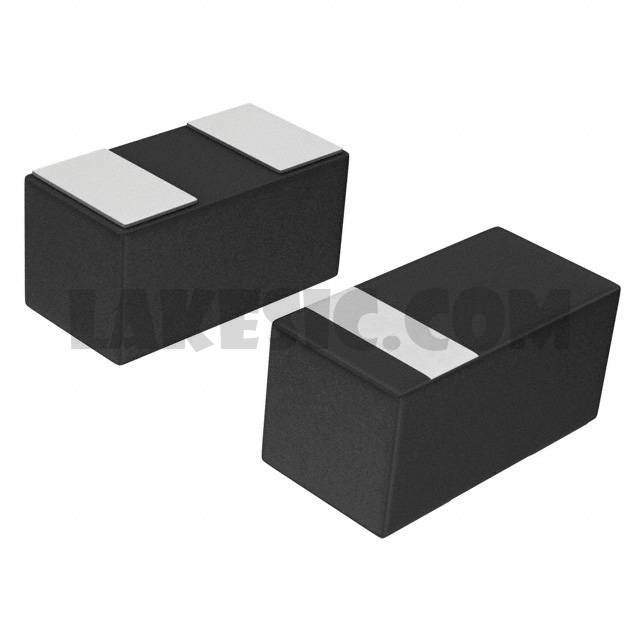

NSR01F30NXT5G

NSR01F30NXT5G

Part NumberNSR01F30NXT5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 30V 100MA 2DSN

DatasheetNSR01F30NXT5G

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA (DC) Surface Mount 2-DSN (0.60x0.30)

To learn about the specification of NSR01F30NXT5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR01F30NXT5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR01F30NXT5G.
We are offering NSR01F30NXT5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR01F30NXT5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR01F30NXT5G
Standard Package	5000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA (DC)
Voltage - Forward (Vf) (Max) @ If	500mV @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	7pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-DSN (0.60x0.30)
Operating Temperature - Junction	125°C (Max)
Base Part Number	NSR01F30
