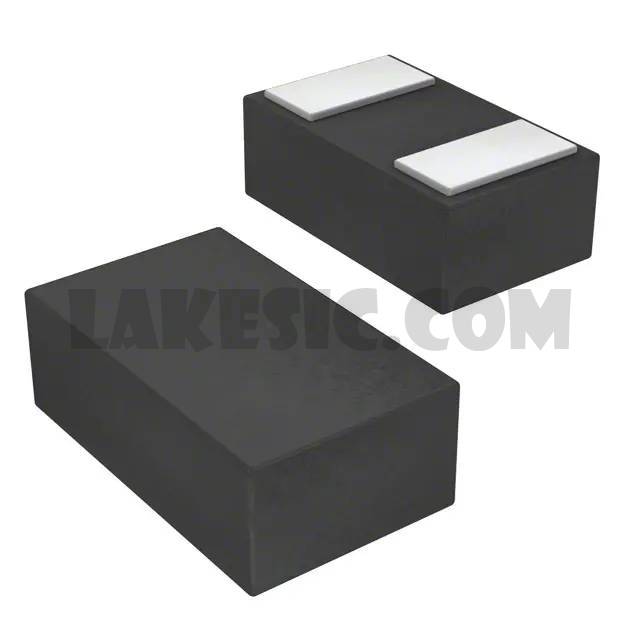

NSR02F30MXT5G

NSR02F30MXT5G

Part NumberNSR02F30MXT5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 30V 200MA 2DFN

DatasheetNSR02F30MXT5G

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 200mA (DC) Surface Mount 2-X3DFN (0.62x0.32)

To learn about the specification of NSR02F30MXT5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR02F30MXT5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR02F30MXT5G.
We are offering NSR02F30MXT5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR02F30MXT5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR02F30MXT5G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	600mV @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	2-X3DFN (0.62x0.32)
Operating Temperature - Junction	-55°C ~ 125°C
