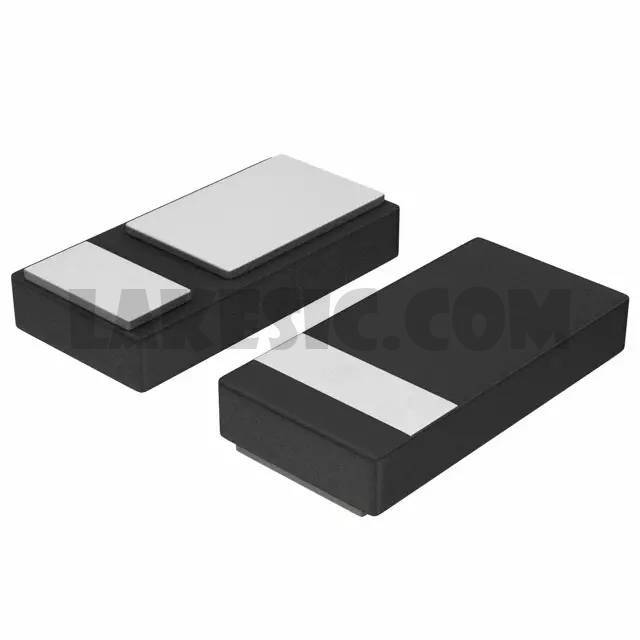

NSR05F20NXT5G

NSR05F20NXT5G

Part NumberNSR05F20NXT5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 20V 500MA 2DSN

DatasheetNSR05F20NXT5G

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 500mA (DC) Surface Mount 2-DSN (1x.60)

To learn about the specification of NSR05F20NXT5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR05F20NXT5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR05F20NXT5G.
We are offering NSR05F20NXT5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR05F20NXT5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR05F20NXT5G
Standard Package	5000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	500mA (DC)
Voltage - Forward (Vf) (Max) @ If	430mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	75µA @ 20V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	2-DSN (1x.60)
Operating Temperature - Junction	150°C (Max)
Base Part Number	NSR05F20
