NST846BF3T5G

NST846BF3T5G

Part NumberNST846BF3T5G

ManufacturerON Semiconductor

DescriptionTRANS NPN 65V 0.1A SOT-1123

DatasheetNST846BF3T5G

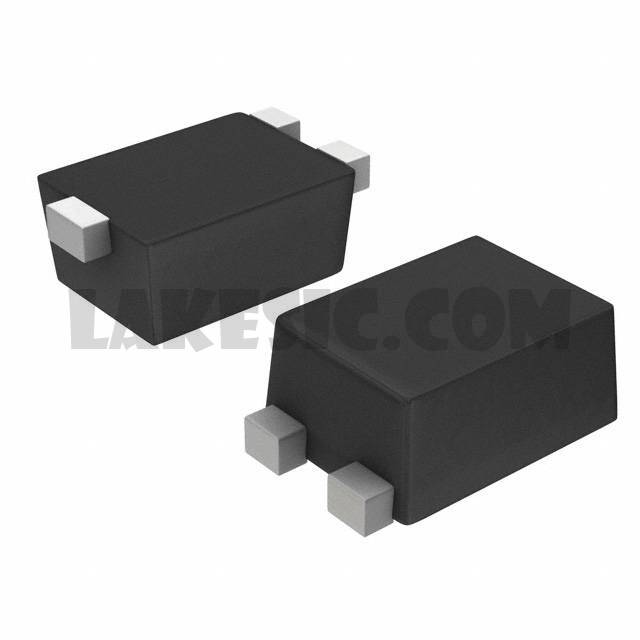

Package / CaseSOT-1123

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 65V 100mA 100MHz 290mW Surface Mount SOT-1123

To learn about the specification of NST846BF3T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NST846BF3T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NST846BF3T5G.
We are offering NST846BF3T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NST846BF3T5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NST846BF3T5G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	65V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 2mA, 5V
Power - Max	290mW
Frequency - Transition	100MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-1123
Supplier Device Package	SOT-1123
