NSVF4015SG4T1G

NSVF4015SG4T1G

Part NumberNSVF4015SG4T1G

ManufacturerON Semiconductor

DescriptionRF TRANS NPN 12V 10GHZ SC82FL/

DatasheetNSVF4015SG4

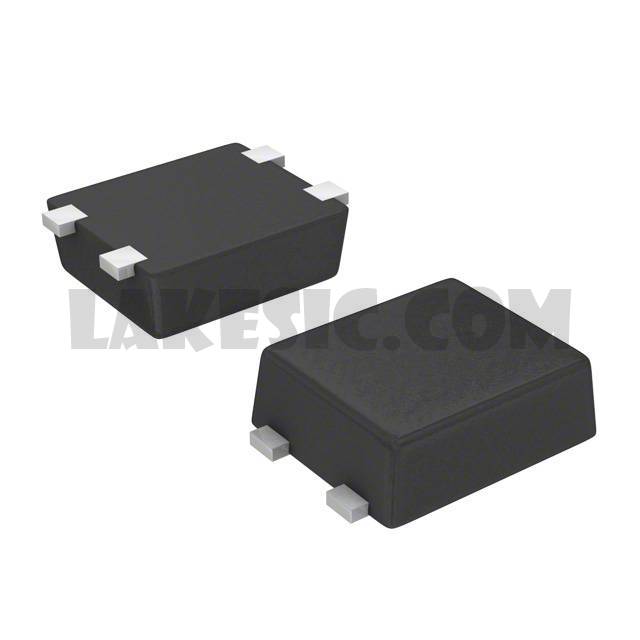

Package / Case4-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 12V 100mA 10GHz 450mW Surface Mount SC-82FL/MCPH4

To learn about the specification of NSVF4015SG4T1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSVF4015SG4T1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSVF4015SG4T1G.
We are offering NSVF4015SG4T1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSVF4015SG4T1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	NSVF4015SG4
Standard Package	3000
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	1.2dB @ 1GHz
Gain	17dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 50mA, 5V
Current - Collector (Ic) (Max)	100mA
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Flat Leads
Supplier Device Package	SC-82FL/MCPH4
