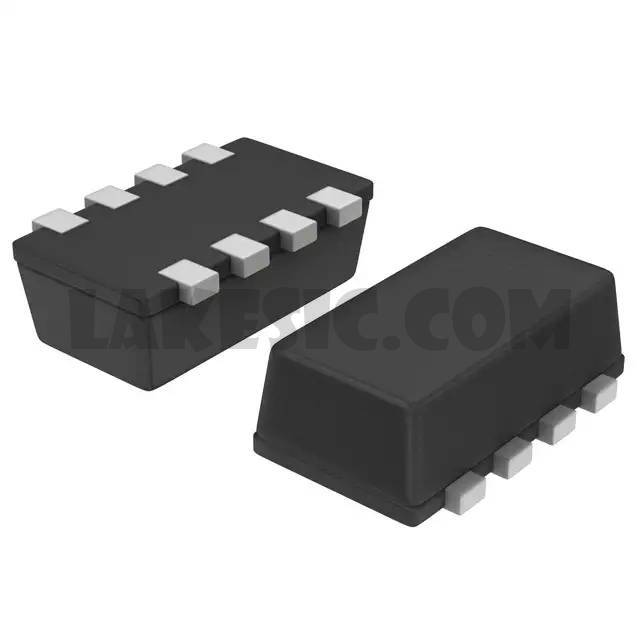

NTHD3102CT1G

NTHD3102CT1G

Part NumberNTHD3102CT1G

ManufacturerON Semiconductor

DescriptionMOSFET N/P-CH 20V 4A/3.1A 1206A

DatasheetNTHD3102C

Package / Case8-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 4A, 3.1A 1.1W Surface Mount ChipFET™

To learn about the specification of NTHD3102CT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTHD3102CT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTHD3102CT1G.
We are offering NTHD3102CT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTHD3102CT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTHD3102C
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4A, 3.1A
Rds On (Max) @ Id, Vgs	45mOhm @ 4.4A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	510pF @ 10V
Power - Max	1.1W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	ChipFET™
Base Part Number	NTHD3102C
