NTLGF3402PT2G

Part NumberNTLGF3402PT2G

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 2.3A 6-DFN

DatasheetNTLGF3402P

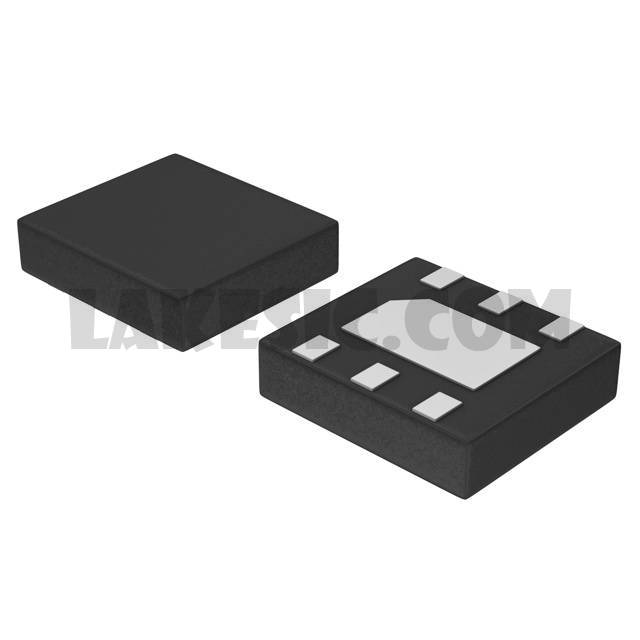

Package / Case6-VDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 2.3A (Ta) 1.14W (Ta) Surface Mount 6-DFN (3x3)

To learn about the specification of NTLGF3402PT2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLGF3402PT2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLGF3402PT2G.
We are offering NTLGF3402PT2G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLGF3402PT2G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

NTLGF3402P

Standard Package

3000

Manufacturer

ON Semiconductor

Series

FETKY™

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

P-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

20V

Current - Continuous Drain (Id) @ 25°C

2.3A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

2.5V, 4.5V

Rds On (Max) @ Id, Vgs

140mOhm @ 2.7A, 4.5V

Vgs(th) (Max) @ Id

2V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

10nC @ 4.5V

Vgs (Max)

±12V

Input Capacitance (Ciss) (Max) @ Vds

350pF @ 10V

FET Feature

Power Dissipation (Max)

1.14W (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

6-DFN (3x3)

Package / Case

6-VDFN Exposed Pad
