NTLJD3119CTBG

NTLJD3119CTBG

Part NumberNTLJD3119CTBG

ManufacturerON Semiconductor

DescriptionMOSFET N/P-CH 20V 6WDFN

DatasheetNTLJD3119C

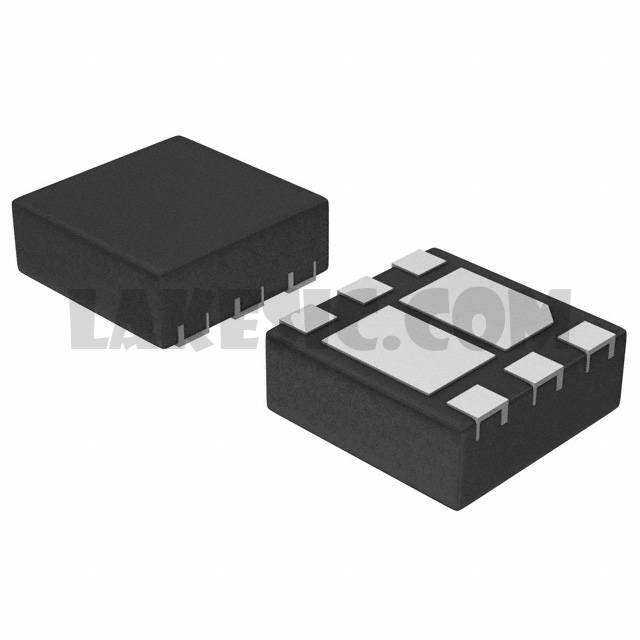

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 2.6A, 2.3A 710mW Surface Mount 6-WDFN (2x2)

To learn about the specification of NTLJD3119CTBG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLJD3119CTBG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLJD3119CTBG.
We are offering NTLJD3119CTBG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLJD3119CTBG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTLJD3119C
Standard Package	1
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	2.6A, 2.3A
Rds On (Max) @ Id, Vgs	65mOhm @ 3.8A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	271pF @ 10V
Power - Max	710mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WDFN (2x2)
Base Part Number	NTLJD3119C
