NTLJS4114NTAG

Part NumberNTLJS4114NTAG

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 30V 3.6A 6WDFN

DatasheetNTLJS4114N

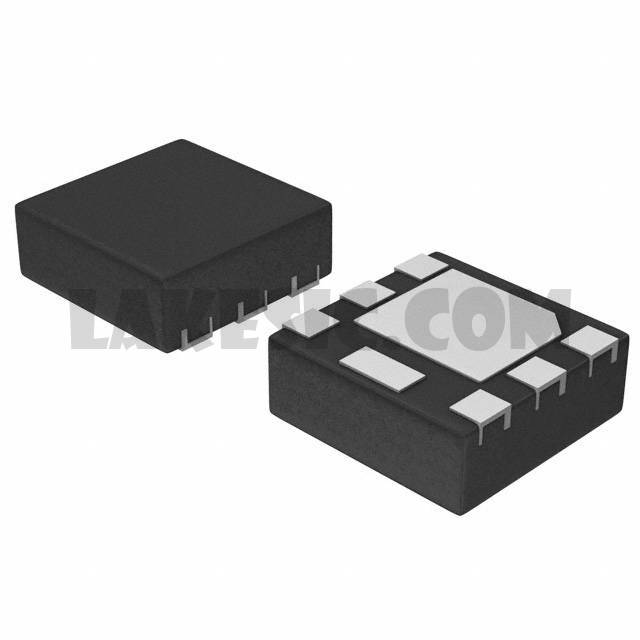

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 3.6A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)

To learn about the specification of NTLJS4114NTAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLJS4114NTAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLJS4114NTAG.
We are offering NTLJS4114NTAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLJS4114NTAG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

NTLJS4114N

Standard Package

3000

Manufacturer

ON Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

3.6A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.8V, 4.5V

Rds On (Max) @ Id, Vgs

35mOhm @ 2A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

13nC @ 4.5V

Vgs (Max)

±12V

Input Capacitance (Ciss) (Max) @ Vds

650pF @ 15V

FET Feature

Power Dissipation (Max)

700mW (Ta)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

6-WDFN (2x2)

Package / Case

6-WDFN Exposed Pad
