NTLUS030N03CTAG

NTLUS030N03CTAG

Part NumberNTLUS030N03CTAG

ManufacturerON Semiconductor

DescriptionT6 30V NCH 1.6X1.6 UDFN

DatasheetNTLUS030N03C

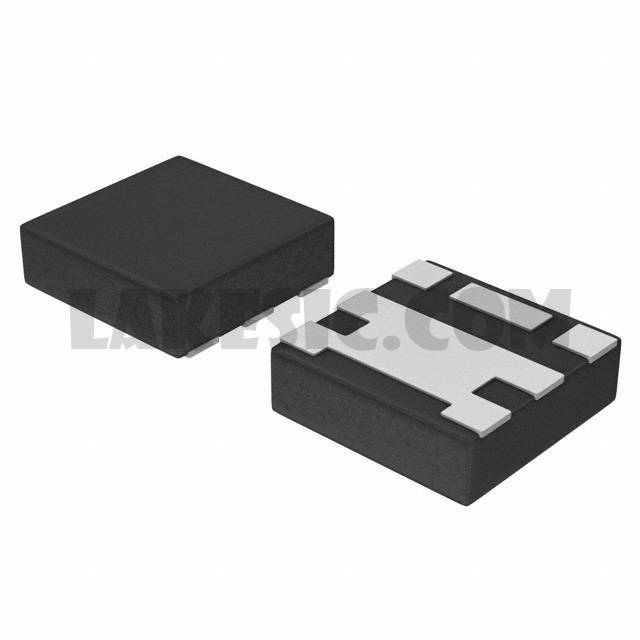

Package / Case6-PowerUFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 4.5A (Ta) 640mW (Ta) Surface Mount 6-UDFN (1.6x1.6)

To learn about the specification of NTLUS030N03CTAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLUS030N03CTAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLUS030N03CTAG.
We are offering NTLUS030N03CTAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLUS030N03CTAG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLUS030N03C
Standard Package	1
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	18mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	400pF @ 15V
FET Feature	-
Power Dissipation (Max)	640mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (1.6x1.6)
Package / Case	6-PowerUFDFN
