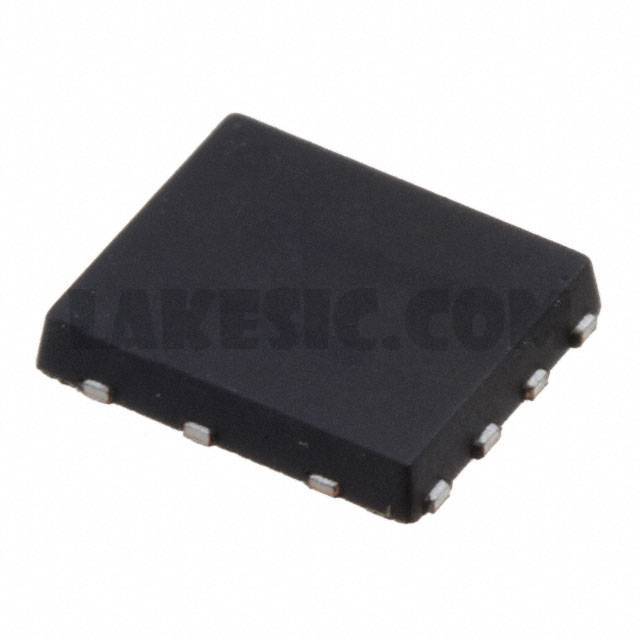

NTMFD4901NFT1G


NTMFD4901NFT1G

Part NumberNTMFD4901NFT1G

Manufacturer

Description

Datasheet

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NTMFD4901NFT1G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerON Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual), Schottky
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C10.3A, 17.9A
Rds On (Max) @ Id, Vgs6.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs9.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1150pF @ 15V
Power - Max1.1W, 1.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical)
