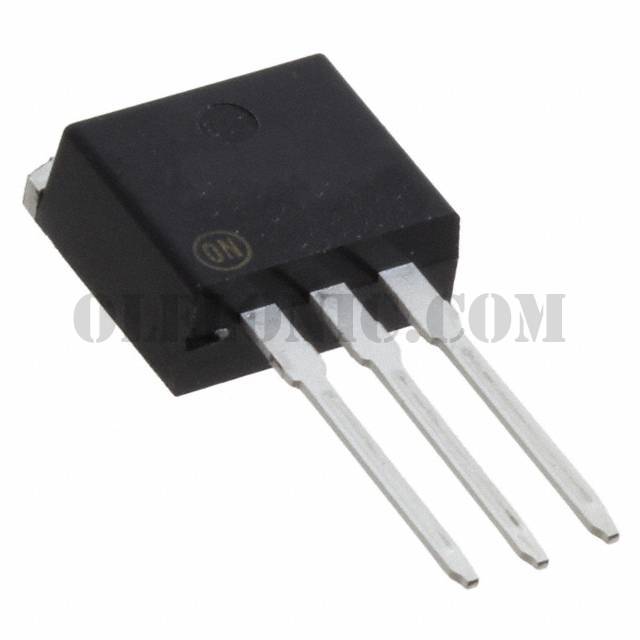

NTSB30120CT-1G

Part NumberNTSB30120CT-1G

ManufacturerON Semiconductor

DescriptionDIODE ARRAY SCHOTTKY 120V I2PAK

DatasheetNTSx30120CT

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 120V 15A Through Hole TO-262-3 Long Leads, I²Pak, TO-262AA

To learn about the specification of NTSB30120CT-1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTSB30120CT-1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTSB30120CT-1G.
We are offering NTSB30120CT-1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTSB30120CT-1G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	NTSx30120CT
Standard Package	50
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	120V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	1.08V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	800µA @ 120V
Operating Temperature - Junction	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	I2PAK (TO-262)
Base Part Number	NTST30120CT
