NTTS2P03R2


NTTS2P03R2

Part NumberNTTS2P03R2

Manufacturer

Description

Datasheet

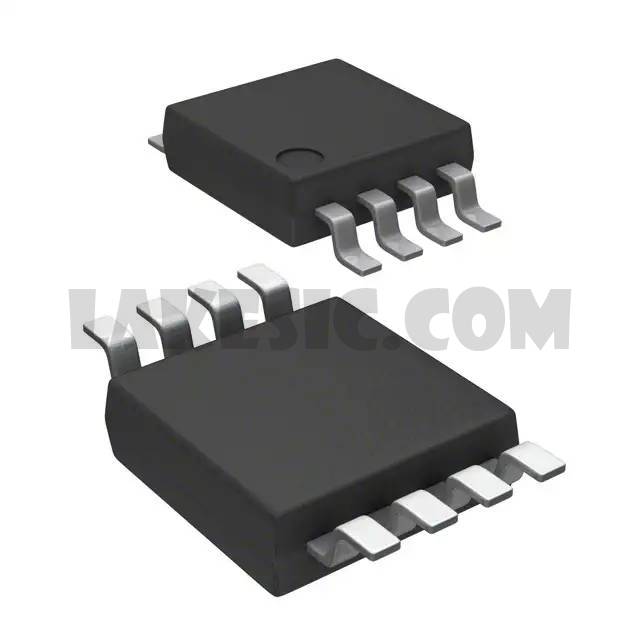

Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NTTS2P03R2 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package4000
ManufacturerON Semiconductor
Series-
PackagingTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs85mOhm @ 2.48A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs22nC @ 4.5V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds500pF @ 24V
FET Feature-
Power Dissipation (Max)600mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicro8™
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
