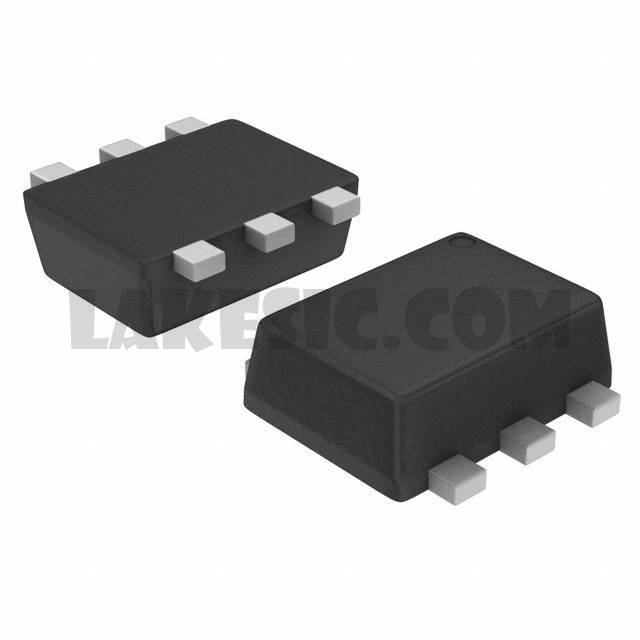

NTZD3152PT1G

NTZD3152PT1G

Part NumberNTZD3152PT1G

ManufacturerON Semiconductor

DescriptionMOSFET 2P-CH 20V 0.43A SOT-563

DatasheetNTZD3152P

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 P-Channel (Dual) 20V 430mA 250mW Surface Mount SOT-563

To learn about the specification of NTZD3152PT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTZD3152PT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTZD3152PT1G.
We are offering NTZD3152PT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTZD3152PT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTZD3152P
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	430mA
Rds On (Max) @ Id, Vgs	900mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	175pF @ 16V
Power - Max	250mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
Base Part Number	NTZD3152P
