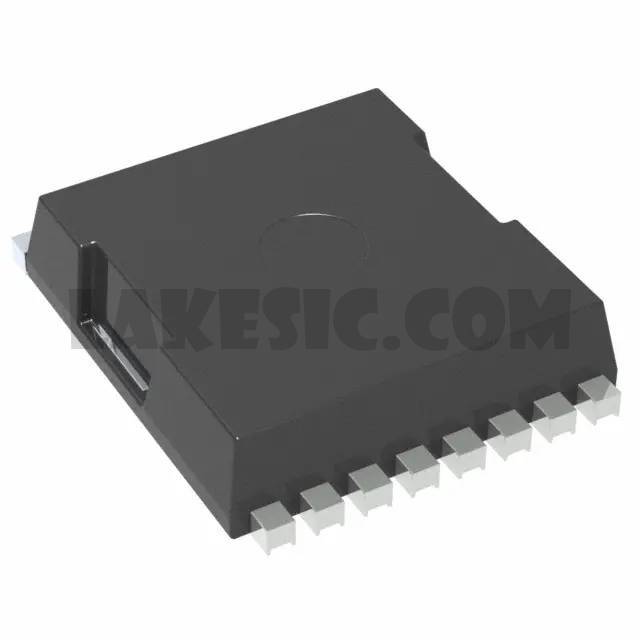

NVBLS0D7N04M8TXG

NVBLS0D7N04M8TXG

Part NumberNVBLS0D7N04M8TXG

ManufacturerON Semiconductor

DescriptionNMOS TOLL 40V 1.2 MOHM

DatasheetNVBLS0D7N04M8

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 240A (Tc) 357W (Tj) Surface Mount 8-HPSOF

To learn about the specification of NVBLS0D7N04M8TXG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NVBLS0D7N04M8TXG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NVBLS0D7N04M8TXG.
We are offering NVBLS0D7N04M8TXG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NVBLS0D7N04M8TXG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NVBLS0D7N04M8
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	240A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.75mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	188nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	12000pF @ 25V
FET Feature	-
Power Dissipation (Max)	357W (Tj)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-HPSOF
Package / Case	8-PowerSFN
