NVMTS0D7N04CTXG

NVMTS0D7N04CTXG

Part NumberNVMTS0D7N04CTXG

ManufacturerON Semiconductor

DescriptionAFSM T6 40V SG NCH

DatasheetNVMTS0D7N04C

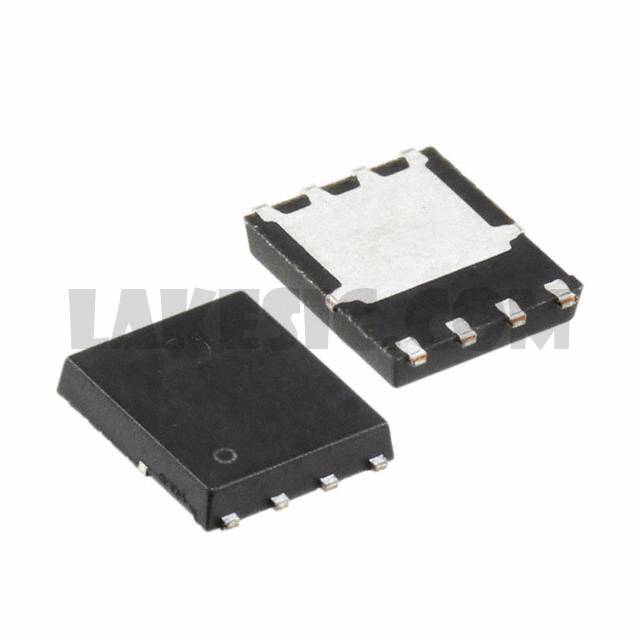

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 51A (Ta), 430A (Tc) 3.9W (Ta), 273W (Tc) Surface Mount, Wettable Flank 8-DFNW (8.3x8.4)

To learn about the specification of NVMTS0D7N04CTXG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NVMTS0D7N04CTXG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NVMTS0D7N04CTXG.
We are offering NVMTS0D7N04CTXG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NVMTS0D7N04CTXG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NVMTS0D7N04C
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	51A (Ta), 430A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	0.67mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	140nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9281pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.9W (Ta), 273W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
