NX1029X,115

NX1029X,115

Part NumberNX1029X,115

ManufacturerNexperia USA Inc.

DescriptionMOSFET N/P-CH 60V/50V SOT666

DatasheetNX1029X

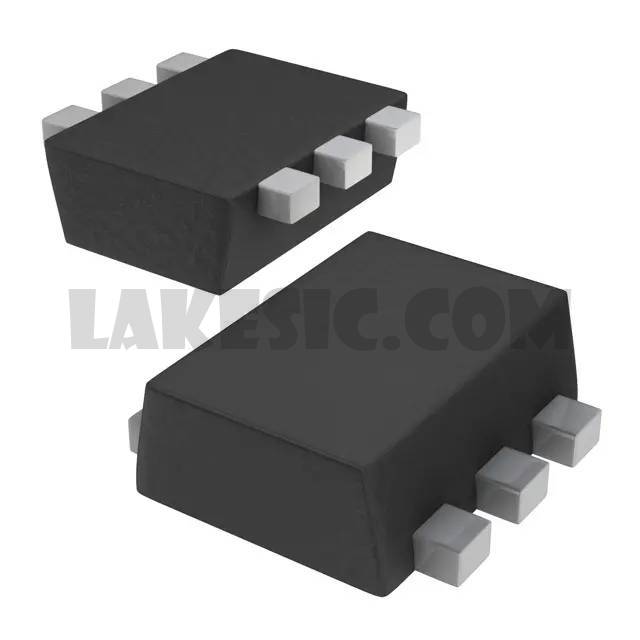

Package / CaseSOT-563, SOT-666

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 60V, 50V 330mA, 170mA 500mW Surface Mount SOT-666

To learn about the specification of NX1029X,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NX1029X,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NX1029X,115.
We are offering NX1029X,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NX1029X,115 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NX1029X
Standard Package	4000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101, TrenchMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V, 50V
Current - Continuous Drain (Id) @ 25°C	330mA, 170mA
Rds On (Max) @ Id, Vgs	7.5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.35nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds	36pF @ 25V
Power - Max	500mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-666
