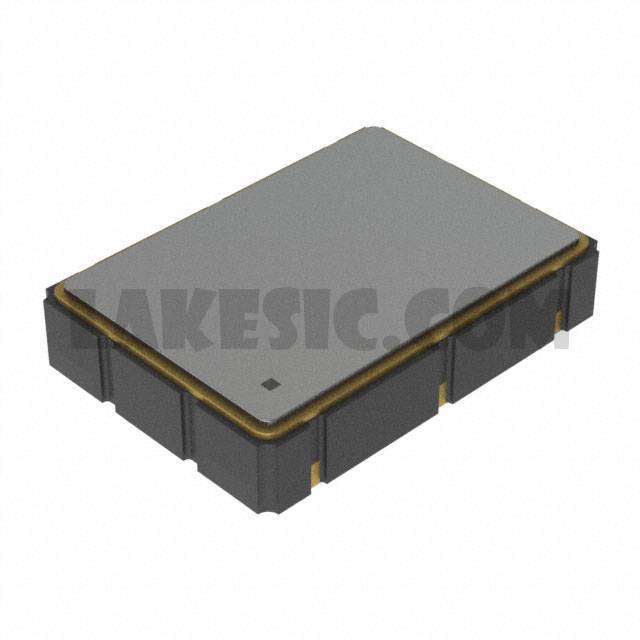

NX76F6201Q

NX76F6201Q

Part NumberNX76F6201Q

ManufacturerDiodes Incorporated

DescriptionCLOCK SAW OSCILLATOR SEAM7050 T&

DatasheetNX76F6201Q Spec Sheet

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description156.25MHz XO (Standard) CML Oscillator 3.3V Enable/Disable 6-SMD, No Lead

To learn about the specification of NX76F6201Q, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NX76F6201Q with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NX76F6201Q.
We are offering NX76F6201Q for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NX76F6201Q - Product Attributes

Categories	Crystals, Oscillators, Resonators / Oscillators
Datasheet	NX76F6201Q Spec Sheet
Standard Package	500
Manufacturer	Diodes Incorporated
Series	SaRonix-eCera™ NX
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency	156.25MHz
Function	Enable/Disable
Output	CML
Voltage - Supply	3.3V
Frequency Stability	±25ppm
Absolute Pull Range (APR)	-
Operating Temperature	-40°C ~ 85°C
Spread Spectrum Bandwidth	-
Current - Supply (Max)	70mA
Ratings	AEC-Q200
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.061" (1.55mm)
Current - Supply (Disable) (Max)	40mA
