NZT660A

NZT660A

Part NumberNZT660A

ManufacturerON Semiconductor

DescriptionTRANS PNP 60V 3A SOT223

DatasheetNZT660/NZT660A

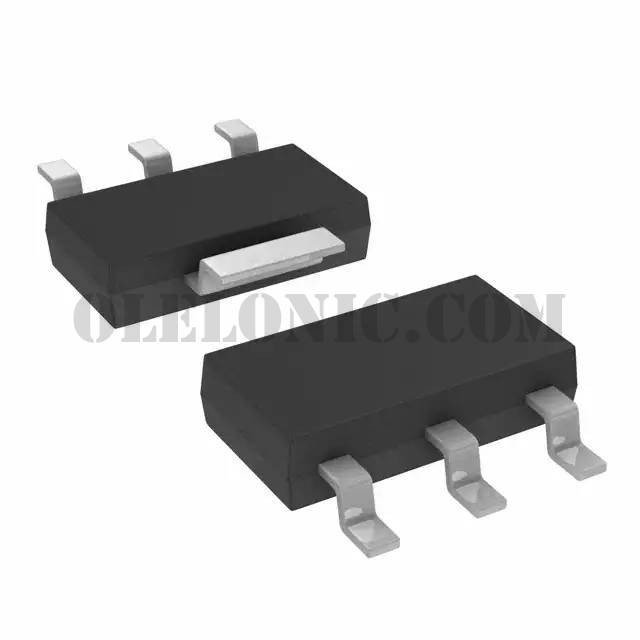

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 60V 3A 75MHz 2W Surface Mount SOT-223-4

To learn about the specification of NZT660A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NZT660A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NZT660A.
We are offering NZT660A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NZT660A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NZT660/NZT660A
Standard Package	4000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	500mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	250 @ 500mA, 2V
Power - Max	2W
Frequency - Transition	75MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
Base Part Number	NZT660
