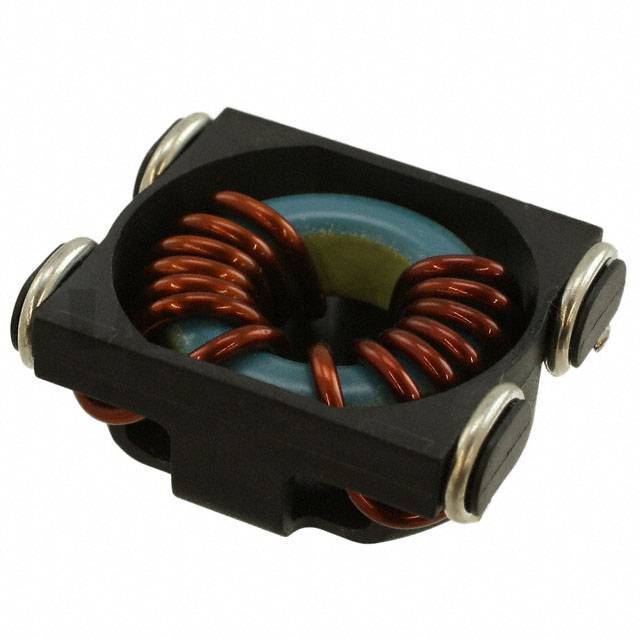

P0597NL

Part NumberP0597NL

ManufacturerPulse Electronics Power

DescriptionINDUCT ARRAY 2 COIL 5.7UH SMD

DatasheetHCCI-80 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 22.8µH Inductance - Connected in Series 5.7µH Inductance - Connected in Parallel 2.5mOhm Max DC Resistance (DCR) - Parallel 27A Nonstandard

To learn about the specification of P0597NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add P0597NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of P0597NL.
We are offering P0597NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

P0597NL - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

HCCI-80 Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

HCCI-80

Packaging

Tube

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

5.7µH

Inductance - Connected In Series

22.8µH

Tolerance

±15%

Current Rating - Parallel

27A

Current Rating - Series

13.5A

DC Resistance (DCR) - Parallel

2.5mOhm Max

DC Resistance (DCR) - Series

10.1mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 130°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

1.220" L x 1.000" W (30.99mm x 25.40mm)

Height

0.500" (12.70mm)
