P0751.682NLT
P0751.682NLT

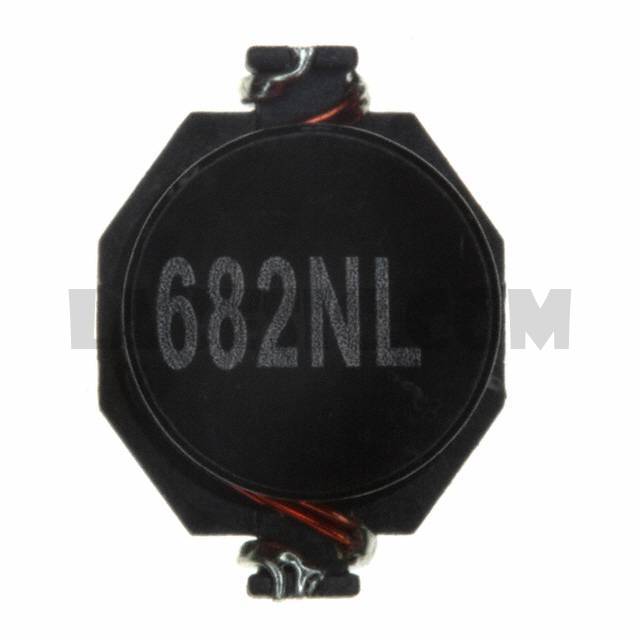

Part Number P0751.682NLT Description FIXED IND 6.8UH 4.4A 44 MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6.8µH Unshielded Wirewound Inductor 4.4A 44mOhm Max Nonstandard
To learn about the specification of P0751.682NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add P0751.682NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of P0751.682NLT.
We are offering P0751.682NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
P0751.682NLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet P0751/2 Series SMT Unshielded Drum Core Pwr Inductor Standard Package 1 Manufacturer Pulse Electronics Power Series P0751NL Packaging Cut Tape (CT) Part Status Active Type Wirewound Material - Core - Inductance 6.8µH Tolerance ±20% Current Rating (Amps) 4.4A Current - Saturation 4.6A Shielding Unshielded DC Resistance (DCR) 44mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 130°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm) Height - Seated (Max) 0.215" (5.46mm)
