P1168.104NLT
P1168.104NLT

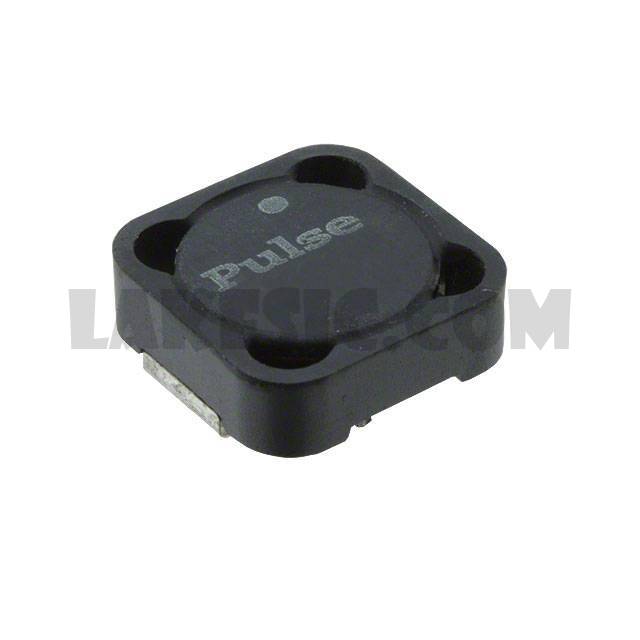

Part Number P1168.104NLT Description FIXED IND 100UH 1.2A 270 MOHM Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 100µH Shielded Wirewound Inductor 1.2A 270mOhm Max Nonstandard
To learn about the specification of P1168.104NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add P1168.104NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of P1168.104NLT.
We are offering P1168.104NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
P1168.104NLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet P1168,69NL Series Datasheet Standard Package 500 Manufacturer Pulse Electronics Power Series P1168NL Packaging Tape & Reel (TR) Part Status Active Type Wirewound Material - Core - Inductance 100µH Tolerance ±20% Current Rating (Amps) 1.2A Current - Saturation 1.2A Shielding Shielded DC Resistance (DCR) 270mOhm Max Q @ Freq - Frequency - Self Resonant 6MHz Ratings - Operating Temperature -40°C ~ 130°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm) Height - Seated (Max) 0.177" (4.50mm)
