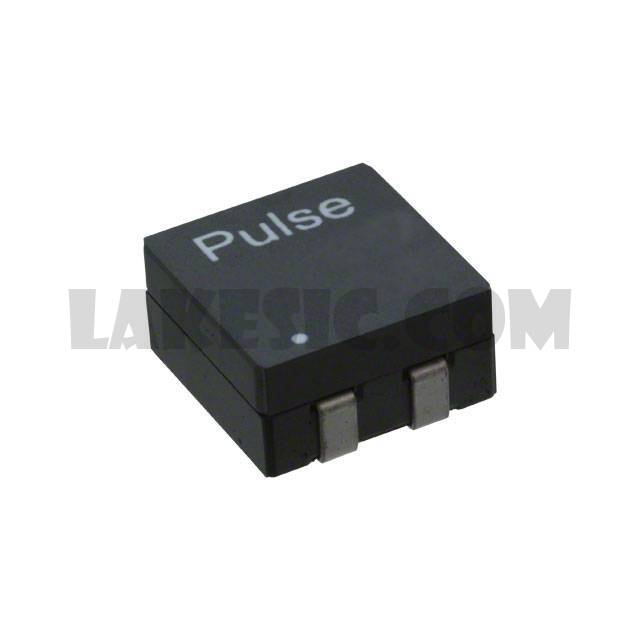

PA0766.421NLT

Part NumberPA0766.421NLT

ManufacturerPulse Electronics Power

DescriptionINDUCT ARRAY 2 COIL 218NH SMD

DatasheetPA0766NL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 870nH Inductance - Connected in Series 218nH Inductance - Connected in Parallel 0.38mOhm Max DC Resistance (DCR) - Parallel 50A Nonstandard

To learn about the specification of PA0766.421NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA0766.421NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA0766.421NLT.
We are offering PA0766.421NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA0766.421NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

PA0766NL Series

Standard Package

250

Manufacturer

Pulse Electronics Power

Series

PA0766NL

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

Inductance - Connected In Parallel

218nH

Inductance - Connected In Series

870nH

Tolerance

±20%

Current Rating - Parallel

50A

Current Rating - Series

25A

Current Saturation - Parallel

50A

Current Saturation - Series

25A

DC Resistance (DCR) - Parallel

0.38mOhm Max

DC Resistance (DCR) - Series

1.5mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 130°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.551" L x 0.531" W (14.00mm x 13.50mm)

Height

0.276" (7.00mm)
