PA4343.223ANLT
PA4343.223ANLT

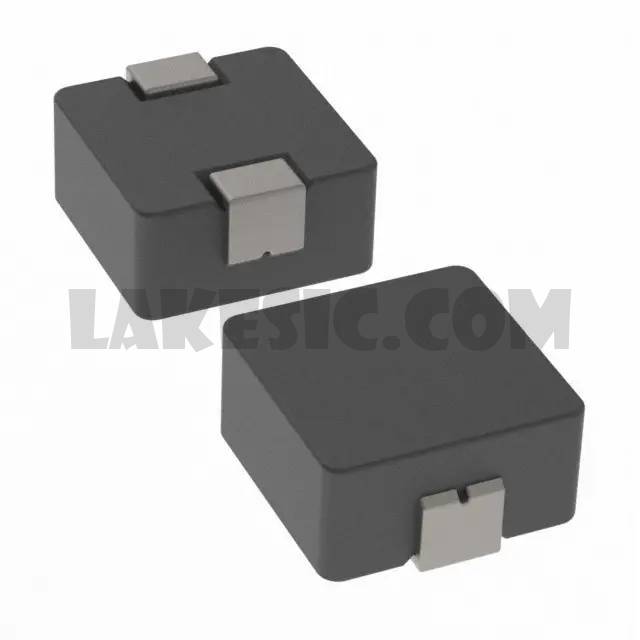

Part Number PA4343.223ANLT Description INDUCTOR 22 UH SMT 14.0 X 12.8 Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 22µH Shielded Molded Inductor 8A 35mOhm Max Nonstandard
To learn about the specification of PA4343.223ANLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA4343.223ANLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA4343.223ANLT.
We are offering PA4343.223ANLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PA4343.223ANLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet PA4343.zzzANLT Series Standard Package 500 Manufacturer Pulse Electronics Power Series PA4343.XXXANLT Packaging Tape & Reel (TR) Part Status Active Type Molded Material - Core - Inductance 22µH Tolerance ±20% Current Rating (Amps) 8A Current - Saturation 9A Shielding Shielded DC Resistance (DCR) 35mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings AEC-Q200 Operating Temperature -55°C ~ 155°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.531" L x 0.496" W (13.50mm x 12.60mm) Height - Seated (Max) 0.256" (6.50mm)
