PA5003.821NLT
PA5003.821NLT

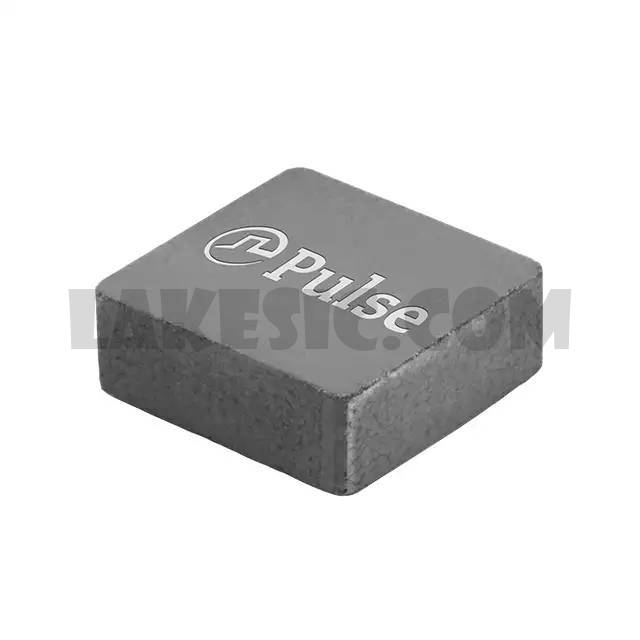

Part Number PA5003.821NLT Description FIX IND 820NH 12.9A 5.78MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 820nH Shielded Molded Inductor 12.9A 5.78mOhm Max Nonstandard
To learn about the specification of PA5003.821NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA5003.821NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA5003.821NLT.
We are offering PA5003.821NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PA5003.821NLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet PA5003, PM2203 Series Datasheet Standard Package 2000 Manufacturer Pulse Electronics Power Series PA5003.XXXNLT Packaging Tape & Reel (TR) Part Status Active Type Molded Material - Core Ferrite Inductance 820nH Tolerance ±20% Current Rating (Amps) 12.9A Current - Saturation 19.7A Shielding Shielded DC Resistance (DCR) 5.78mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings - Operating Temperature -40°C ~ 125°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package - Size / Dimension 0.217" L x 0.209" W (5.50mm x 5.30mm) Height - Seated (Max) 0.122" (3.10mm)
