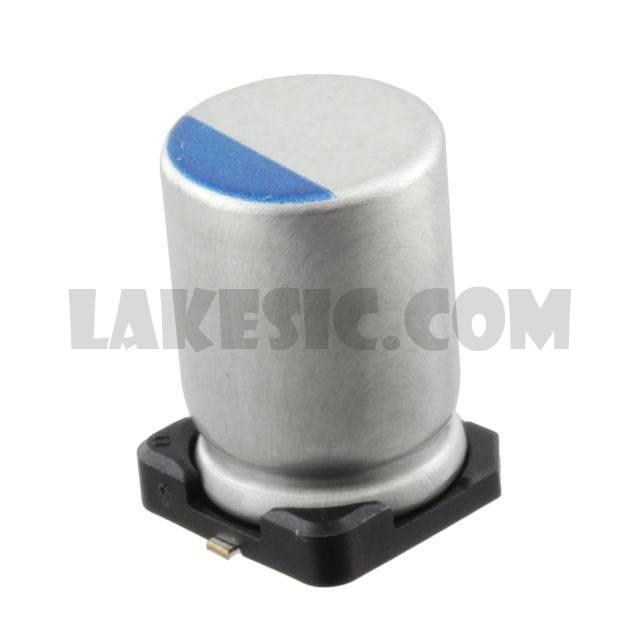

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCJ Series
Standard Package	500
Manufacturer	Nichicon
Series	PCJ
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	16mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	4.35A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCJ1A681MCL1GS	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 13mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1C330MCL1GS	Nichicon, 33µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1A681MCL1GS	Nichicon, 680µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 13mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1C820MCL1GS	Nichicon, 82µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ0J331MCL1GS	Nichicon, 330µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 14mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ0E471MCL1GS	Nichicon, 470µF 2.5V Aluminum Polymer Capacitor Radial, Can - SMD 13mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ0G271MCL1GS	Nichicon, 270µF 4V Aluminum Polymer Capacitor Radial, Can - SMD 15mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ0J152MCL9GS	Nichicon, 1500µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 10mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1C330MCL1GS	Nichicon, 33µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1C121MCL1GS	Nichicon, 120µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ0J122MCL1GS	Nichicon, 1200µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 12mOhm 2000 Hrs @ 105°C, PCJ	View
PCJ1A331MCL1GS	Nichicon, 330µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 2000 Hrs @ 105°C, PCJ	View

PCJ1C331MCL1GS

Part NumberPCJ1C331MCL1GS
