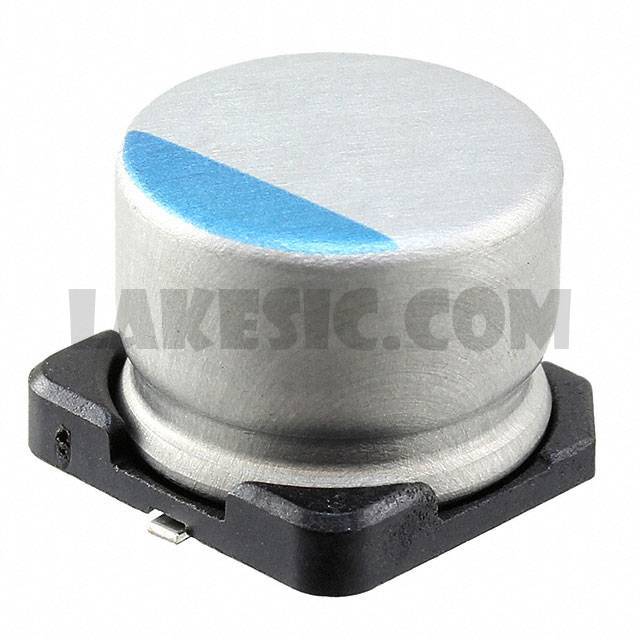

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCR Series
Standard Package	1
Manufacturer	Nichicon
Series	PCR
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	34mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.9A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCR1E221MCL1GS	Nichicon, 220µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J470MCL1GS	Nichicon, 47µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 4000 Hrs @ 125°C, PCR	View
PCR1E471MCL1GS	Nichicon, 470µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 15mOhm 4000 Hrs @ 125°C, PCR	View
PCR1K270MCL1GS	Nichicon, 27µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 38mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H390MCL1GS	Nichicon, 39µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C561MCL1GS	Nichicon, 560µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 16mOhm 4000 Hrs @ 125°C, PCR	View
PCR1K470MCL1GS	Nichicon, 47µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 33mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H820MCL6GS	Nichicon, 82µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C681MCL1GS	Nichicon, 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D471MCL1GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 18mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C471MCL1GS	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D681MCL1GS	Nichicon, 680µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 14mOhm 4000 Hrs @ 125°C, PCR	View

PCR1H820MCL1GS

Part NumberPCR1H820MCL1GS
