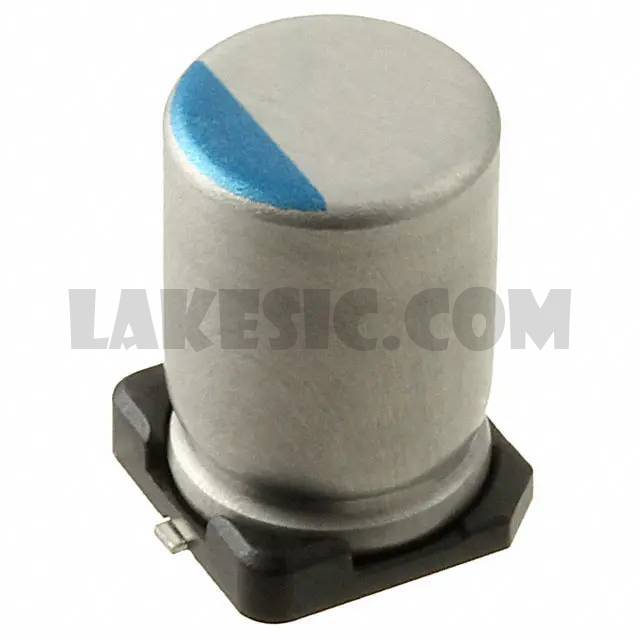

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCR Series
Standard Package	500
Manufacturer	Nichicon
Series	PCR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	22mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	3.1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCR1D681MCL1GS	Nichicon, 680µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 14mOhm 4000 Hrs @ 125°C, PCR	View
PCR1V271MCL1GS	Nichicon, 270µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J220MCL1GS	Nichicon, 22µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 48mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C681MCL1GS	Nichicon, 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D331MCL6GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D471MCL1GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 18mOhm 4000 Hrs @ 125°C, PCR	View
PCR1V221MCL1GS	Nichicon, 220µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H820MCL1GS	Nichicon, 82µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 34mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J680MCL1GS	Nichicon, 68µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C471MCL1GS	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H820MCL6GS	Nichicon, 82µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 4000 Hrs @ 125°C, PCR	View
PCR1K390MCL1GS	Nichicon, 39µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 4000 Hrs @ 125°C, PCR	View

PCR1V151MCL6GS

Part NumberPCR1V151MCL6GS
