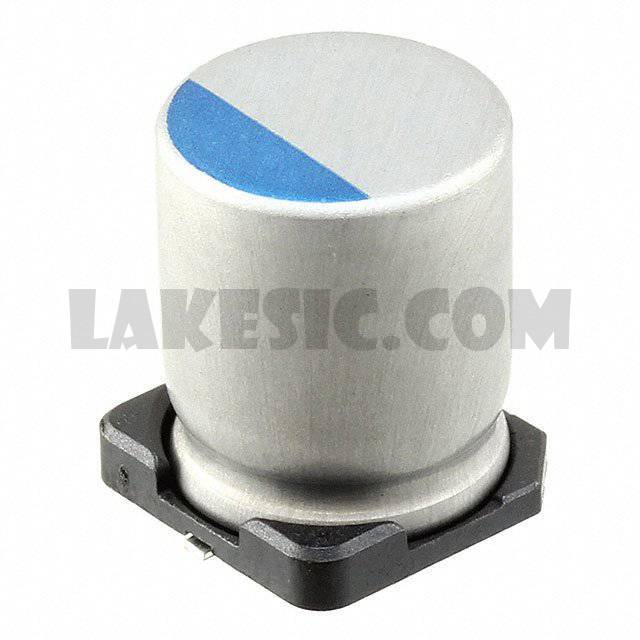

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCR Series
Standard Package	400
Manufacturer	Nichicon
Series	PCR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	16mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	3.9A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCR1J390MCL1GS	Nichicon, 39µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J560MCL1GS	Nichicon, 56µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H820MCL1GS	Nichicon, 82µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 34mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J560MCL1GS	Nichicon, 56µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H121MCL2GS	Nichicon, 120µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 4000 Hrs @ 125°C, PCR	View
PCR1D561MCL1GS	Nichicon, 560µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 4000 Hrs @ 125°C, PCR	View
PCR1E221MCL6GS	Nichicon, 220µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 4000 Hrs @ 125°C, PCR	View
PCR1J101MCL1GS	Nichicon, 100µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C471MCL1GS	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 4000 Hrs @ 125°C, PCR	View
PCR1V221MCL1GS	Nichicon, 220µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 4000 Hrs @ 125°C, PCR	View
PCR1H820MCL6GS	Nichicon, 82µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 4000 Hrs @ 125°C, PCR	View
PCR1C561MCL1GS	Nichicon, 560µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 16mOhm 4000 Hrs @ 125°C, PCR	View

PCR1V331MCL1GS

Part NumberPCR1V331MCL1GS
