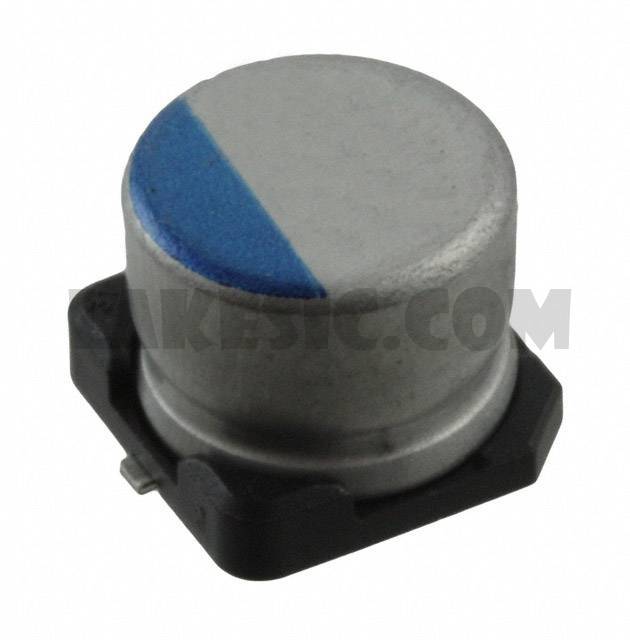

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1000
Manufacturer	Nichicon
Series	PCV
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	42mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.4A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1K120MCL1GS	Nichicon, 12µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 41mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V180MCL1GS	Nichicon, 18µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 64mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E391MCL2GS	Nichicon, 390µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H560MCL2GS	Nichicon, 56µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J560MCL2GS	Nichicon, 56µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C271MCL7GS	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D271MCL2GS	Nichicon, 270µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H101MCL2GS	Nichicon, 100µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V181MCL2GS	Nichicon, 180µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D221MCL7GS	Nichicon, 220µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E151MCL1GS	Nichicon, 150µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C101MCL1GS	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 36mOhm 3000 Hrs @ 105°C, PCV	View

PCV1D101MCL2GS

Part NumberPCV1D101MCL2GS
