Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	PCV
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymer
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	37mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.7A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1C101MCL1GS	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 36mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D471MCL2GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V680MCL1GS	Nichicon, 68µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 37mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E391MCL2GS	Nichicon, 390µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C560MCL1GS	Nichicon, 56µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D471MCL2GS	Nichicon, 470µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 20mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H120MCL2GS	Nichicon, 12µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D331MCL1GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V820MCL7GS	Nichicon, 82µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E151MCL2GS	Nichicon, 150µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C271MCL7GS	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C331MCL1GS	Nichicon, 330µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 3000 Hrs @ 105°C, PCV	View

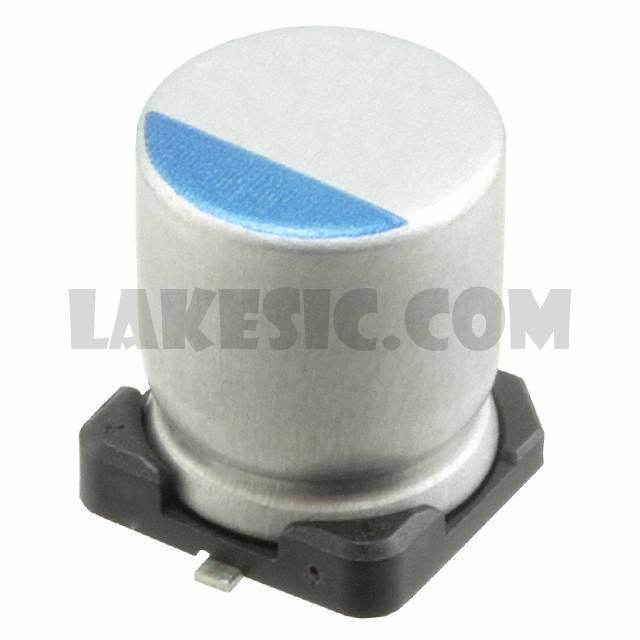

PCV1J220MCL6GS

Part NumberPCV1J220MCL6GS
