Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PCV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	50mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.3A @ 100kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1D221MCL1GS	Nichicon, 220µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V560MCL1GS	Nichicon, 56µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C271MCL7GS	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B150MCL1GS	Nichicon, 15µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 48mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B6R8MCL1GS	Nichicon, 6.8µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 93mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E221MCL2GS	Nichicon, 220µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D331MCL2GS	Nichicon, 330µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E271MCL2GS	Nichicon, 270µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V220MCL2GS	Nichicon, 22µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D470MCL1GS	Nichicon, 47µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D221MCL7GS	Nichicon, 220µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 3000 Hrs @ 105°C, PCV	View
PCV1K220MCL1GS	Nichicon, 22µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 38mOhm 3000 Hrs @ 105°C, PCV	View

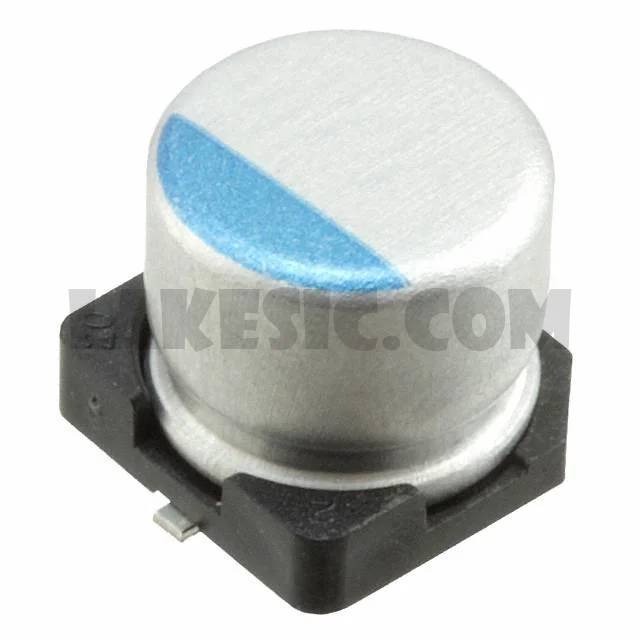

PCV1V220MCL2GS

Part NumberPCV1V220MCL2GS
