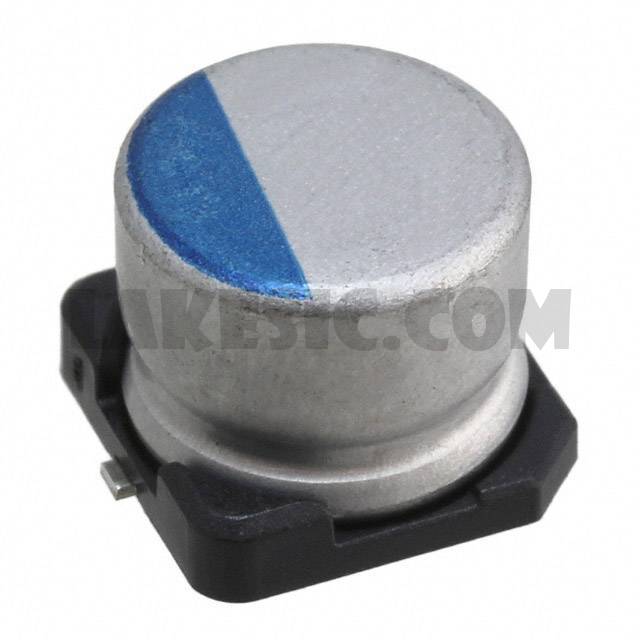

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCX Series
Standard Package	1
Manufacturer	Nichicon
Series	PCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	39µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	55mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.2A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCX1V101MCL1GS	Nichicon, 100µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V390MCS1GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V390MCS1GS	Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1C820MCL1GS	Nichicon, 82µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D151MCL1GS	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E121MCL1GS	Nichicon, 120µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E390MCS1GS	Nichicon, 39µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 55mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E121MCL1GS	Nichicon, 120µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V100MCL1GS	Nichicon, 10µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 85mOhm 1500 Hrs @ 125°C, PCX	View
PCX1H220MCL6GS	Nichicon, 22µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 37mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H120MCL1GS	Nichicon, 12µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 65mOhm 1500 Hrs @ 125°C, PCX	View
PCX1D560MCS1GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 125°C, PCX	View

PCX1E390MCL1GS

Part NumberPCX1E390MCL1GS
