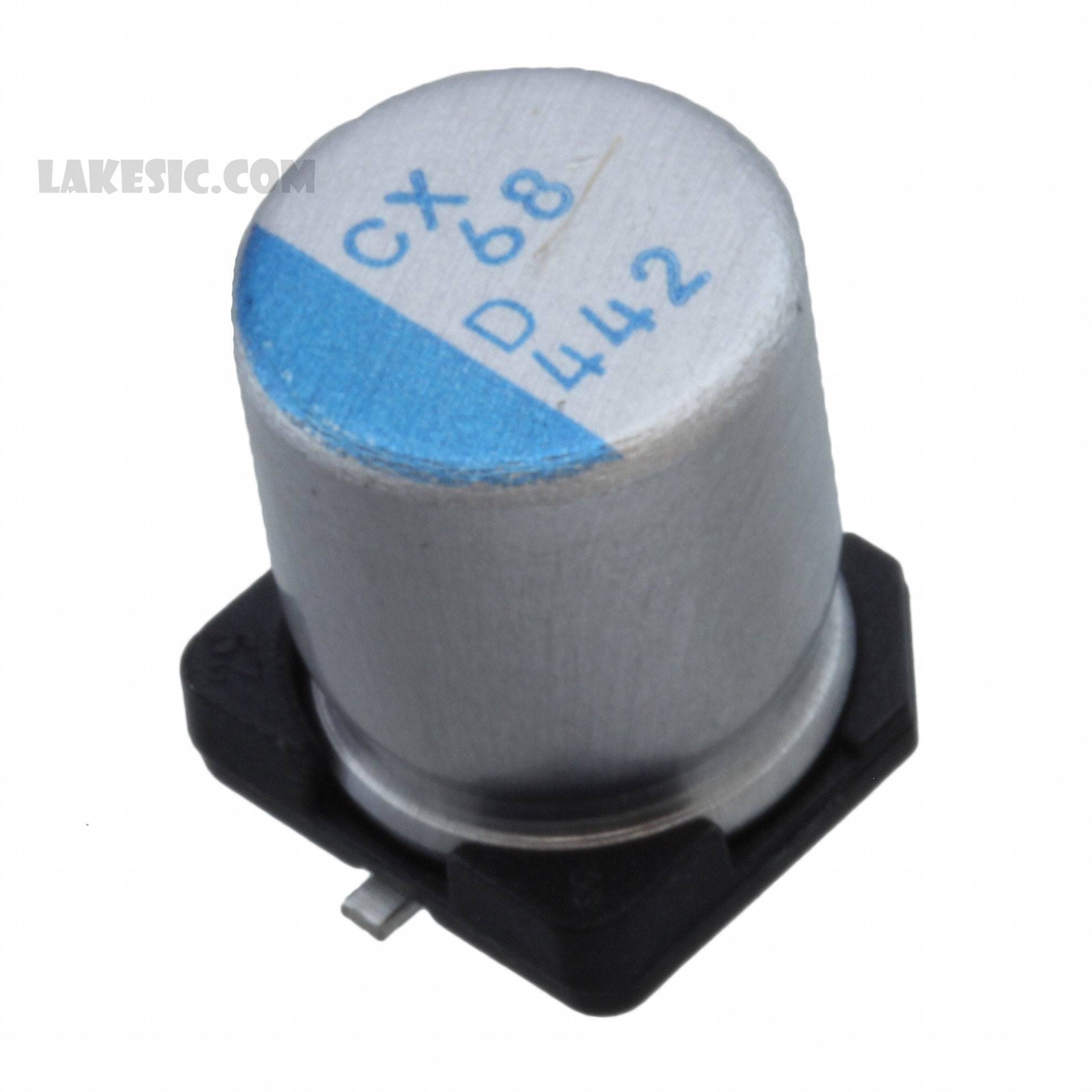

PCX1E560MCL1GS


PCX1E560MCL1GS

Part NumberPCX1E560MCL1GS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PCX1E560MCL1GS - Product Attributes

Categories Capacitors / Aluminum - Polymer Capacitors
Datasheet
Standard Package900
ManufacturerNichicon
SeriesPCX
PackagingTape & Reel (TR)
Part StatusActive
TypePolymer
Capacitance56µF
Tolerance±20%
Voltage - Rated25V
ESR (Equivalent Series Resistance)35mOhm
Lifetime @ Temp.1500 Hrs @ 125°C
Operating Temperature-55°C ~ 125°C
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ High Frequency1.4A @ 100kHz
Lead Spacing-
Size / Dimension0.248" Dia (6.30mm)
Height - Seated (Max)0.319" (8.10mm)
Surface Mount Land Size0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD

PCX1E560MCL1GS - Related Products

More >>
PCX1E560MCL1GS Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX View
PCX1V390MCS1GS Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX View
PCX1V101MCL1GS Nichicon, 100µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX View
PCX1H270MCL1GS Nichicon, 27µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX View
PCX1E220MCL1GS Nichicon, 22µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 65mOhm 1500 Hrs @ 125°C, PCX View
PCX1H330MCL1GS Nichicon, 33µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 125°C, PCX View
PCX1E560MCS1GS Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX View
PCX1D271MCL1GS Nichicon, 270µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 125°C, PCX View
PCX1E121MCL6GS Nichicon, 120µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX View
PCX1V390MCL1GS Nichicon, 39µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 41mOhm 3000 Hrs @ 125°C, PCX View
PCX1H100MCL1GS Nichicon, 10µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 75mOhm 3000 Hrs @ 125°C, PCX View
PCX1V180MCS1GS Nichicon, 18µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 60mOhm 3000 Hrs @ 125°C, PCX View
